LM3911 - Temperature Controller

This page provides the datasheet information for the LM3911, a member of the LM3 Temperature Controller family.

Datasheet Summary

Description

The LM3911 is a highly accurate temperature measurement and or control system for use over a b25 C to a 85 C temperature range Fabricated on a single monolithic chip it includes a temperature sensor a stable voltage reference and an operational amplifier The output voltage of the LM3911 is directly

Features

  • Y Y Y Y Y Y Y Uncalibrated accuracy g 10 C Internal op amp with frequency compensation Linear output of 10 mV K (10 mV C) Can be calibrated in degrees Kelvin Celsius or Fahrenheit Output can drive loads up to 35V Internal stable voltage reference Low cost Block Diagram Typical.

📥 Download Datasheet

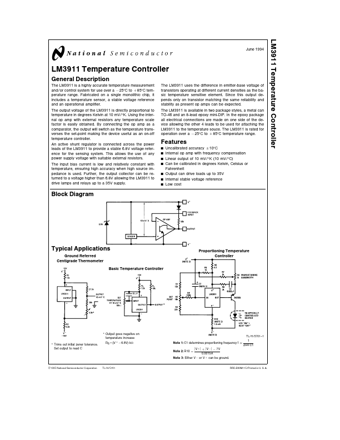

Datasheet preview – LM3911

Datasheet Details

Part number LM3911
Manufacturer National Semiconductor
File Size 210.11 KB
Description Temperature Controller
Datasheet download datasheet LM3911 Datasheet
Additional preview pages of the LM3911 datasheet.

📁 Similar Datasheet

  • LM39100 - 1A Low-Voltage Low-Dropout Regulator (HTC)
  • LM39101 - 1A Low-Voltage Low-Dropout Regulator (HTC)
  • LM39102 - 1A LOW-VOLTAGE LOW-DROPOUT REGULATOR (UTC)
  • LM39102 - 1A Low-Voltage Low-Dropout Regulator (HTC)
  • LM3914 - Dot/Bar Display Driver (Texas Instruments)
  • LM3915 - Dot/Bar Display Driver (Texas Instruments)
  • LM3915N - Dot/Bar Display Driver (Texas Instruments)
  • LM3916 - Dot/Bar Display Driver (Texas Instruments)
  • LM3900 - QUADRUPLE NORTON OPERATIONAL AMPLIFIER (Texas Instruments)
  • LM3900 - QUAD SINGLE SUPPLY OPERATIONAL AMPLIFIERS (Motorola)
Other Datasheets by National Semiconductor
  • LM391 - Audio Power Driver
  • LM3914 - Dot/Bar Display Driver
  • LM3915 - Dot/Bar Display Driver
  • LM3915N - Dot/Bar Display Driver
  • LM3916 - Dot/Bar Display Driver
  • LM390 - LM390 1W Battery Operated Audio Power Amplifier
  • LM3900 - Quad Amplifiers
  • LM3901 - Quad Amplifiers

Full PDF Text Transcription

Click to expand full text
LM3911 Temperature Controller June 1994 LM3911 Temperature Controller General Description The LM3911 is a highly accurate temperature measurement and or control system for use over a b25 C to a 85 C temperature range Fabricated on a single monolithic chip it includes a temperature sensor a stable voltage reference and an operational amplifier The output voltage of the LM3911 is directly proportional to temperature in degrees Kelvin at 10 mV K Using the internal op amp with external resistors any temperature scale factor is easily obtained By connecting the op amp as a comparator the output will switch as the temperature transverses the set-point making the device useful as an on-off temperature controller An active shunt regulator is connected across the power leads of the LM3911 to prov
