LM48510

boosted class D audio power amplifier

National Semiconductor

LM48510 Features

* a low-power consumption shutdown mode. Shutdown may be enabled by driving the Shutdown pin to a logic low (GND). The gain of the Class D is externally configurable which allows independent gain control from multiple sources by summing the signals. Output short circuit and Thermal shutdown protection

LM48510 General Description

The LM48510 integrates a boost converter with a high efficiency mono, Class D audio power amplifier to provide 1.2W continuous power into an 8Ω speaker when operating on a 3.3V power supply with boost voltage (PV1) of 5.0V. When operating on a 3.3V power supply, the LM48510 is capable of driving a 4.

LM48510 Datasheet (435.01 KB)

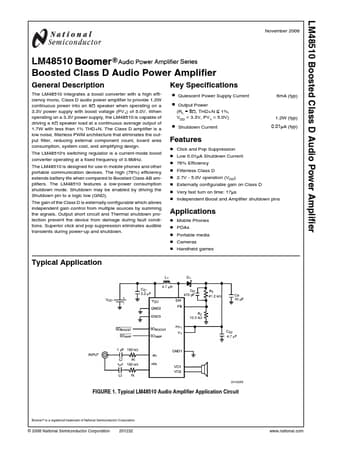

LM48510 Datasheet Preview — Preview of LM48510 PDF

Datasheet Details

Part number:

LM48510

Manufacturer:

National Semiconductor

File Size:

435.01 KB

Description:

Boosted class d audio power amplifier.
