LM4855 - Boomer AUDIO POWER AMPLIFIER

Product Overview

National Semiconductor

Datasheet Details

Part number	LM4855
Manufacturer	National Semiconductor
File Size	1.09 MB
Description	Boomer AUDIO POWER AMPLIFIER
Datasheet	LM4855 Datasheet

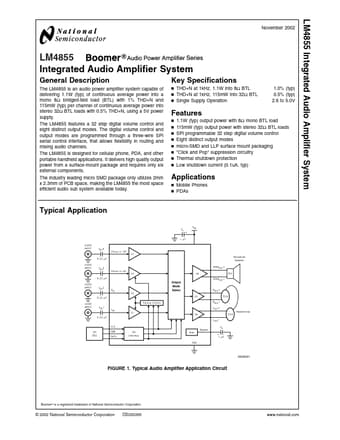

Additional preview pages of the LM4855 datasheet.

Product details

Description

The LM4855 is an audio power amplifier system capable of delivering 1.1W (typ) of continuous average power into a mono 8Ω bridged-tied load (BTL) with 1% THD+N and 115mW (typ) per channel of continuous average power into stereo 32Ω BTL loads with 0.5% THD+N, using a 5V power supply.

Features

a 32 step digital volume control eight distinct output modes. The digital volume control output modes are programmed through a three-wire serial control interface, that allows flexibility in routing mixing audio channels. and and SPI and Key Specifications n THD+N at 1kHz, 1.1W into 8Ω BTL n THD+N at 1kHz, 115mW into 32Ω BTL n Single Supply Operation 1.0% (typ) 0.5% (typ) 2.6 to 5.0V Features n n n n n n n n 1.1W (typ) output power with 8Ω mono BTL load 115mW (typ) output power with stereo 32Ω.
