LM4874 - BTL Output Stereo Audio Amplifier

LM4874 Description

LM4874 Boomer 2.1W Differential Input, BTL Output Stereo Audio Amplifier with Selectable Gain and Shutdown August 2002 LM4874 2.1W Differential Inpu.
The LM4874 features differential stereo inputs, BTL (bridgetied load) outputs, and four externally selectable fixed gains.

LM4874 Features

* differential stereo inputs, BTL (bridgetied load) outputs, and four externally selectable fixed gains. Operating on a single 5V supply, the LM4874 delivers 1.2W, 1.9W, or 2.1W (typ) of output power to an 8Ω, 4Ω, or 3Ω BTL load (Note 1), respectively, with less than 1% THD+N. The LM4874’s gain is sel

📥 Download Datasheet

Preview of LM4874 PDF

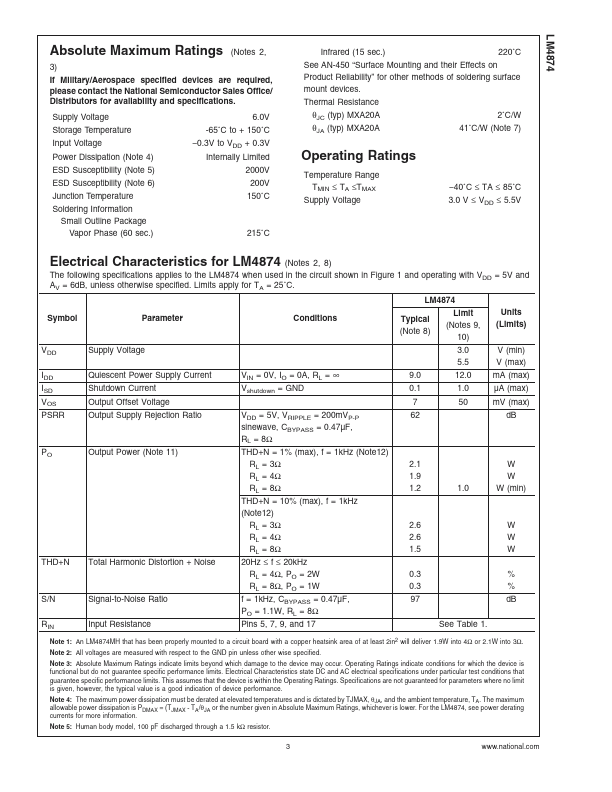

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LM4874
Manufacturer
National Semiconductor
File Size
869.79 KB
Datasheet
LM4874_NationalSemiconductor.pdf
Description
BTL Output Stereo Audio Amplifier
