LM4884 - BTL Output Stereo Audio Amplifier

LM4884 Description

LM4884 Boomer 2.1W Differential Input, BTL Output Stereo Audio Amplifier with RF Suppression and Shutdown April 2005 LM4884 2.1W Differential Input.
The LM4884 features differential stereo inputs, BTL (bridgetied load) outputs, and four externally selectable fixed gains.

LM4884 Features

* differential stereo inputs, BTL (bridgetied load) outputs, and four externally selectable fixed gains. The LM4884 also features proprietary internal circuitry that suppresses the coupling of RF signals into the chip. This is important because certain types of RF signals (such as GSM) can couple into

LM4884 Applications

* in which strong RF signals generated by an antenna from a PC wireless card or a cellular phone may couple audibly into the amplifier. Operating on a single 5V supply, the LM4884 delivers 1.2W, 1.9W, or 2.1W (typ) of output power to an 8Ω, 4Ω, or

📥 Download Datasheet

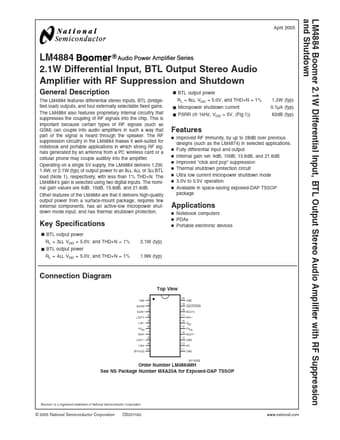

Preview of LM4884 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LM4884
Manufacturer
National Semiconductor
File Size
1.11 MB
Datasheet
LM4884-NationalSemiconductor.pdf
Description
BTL Output Stereo Audio Amplifier
