LM48861 - Stereo Headphone Amplifier

LM48861 Description

LM48861, LM48861TMBD www.ti.com SNAS450B * JUNE 2008 * REVISED MAY 2013 LM48861 Ground-Referenced, Ultra Low Noise, Stereo Headpho.
The LM48861 is a single supply, ground-referenced stereo headphone amplifier.

LM48861 Features

* 1
* 23 Ground Referenced Outputs
* Eliminates Output Coupling Capacitors
* Common-Mode Sensing
* Advanced Click-and-Pop Suppression
* Low Supply Current
* Minimum External Components
* Micro-Power Shutdown
* ESD Protection of 8kV HBM Con

LM48861 Applications

* Mobile Phones
* Portable Electronic Devices
* MP3 Players KEY SPECIFICATIONS
* Output Power/Channel at VDD = 1.5V,THD+N = 1%
* RL = 16Ω 12mW (typ)
* RL = 32Ω 13mW (typ)
* Output Power/Channel at VDD = 1.8V, THD+N = 1%
* RL = 16Ω 24mW

📥 Download Datasheet

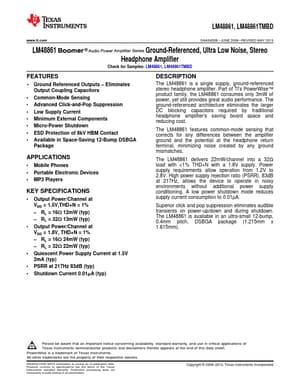

Preview of LM48861 PDF
