LM78L82AC, LM78L05 - 3-Terminal Positive Regulators

National Semiconductor

LM78L82AC Datasheet Preview — This datasheet PDF includes multiple part numbers: LM78L82AC, LM78L05. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	LM78L82AC, LM78L05
Manufacturer	National Semiconductor ↗
File Size	207.92 KB
Description	3-Terminal Positive Regulators
Datasheet	LM78L05-NationalSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: LM78L82AC, LM78L05. Please refer to the document for exact specifications by model.

LM78L82AC Product details

Description

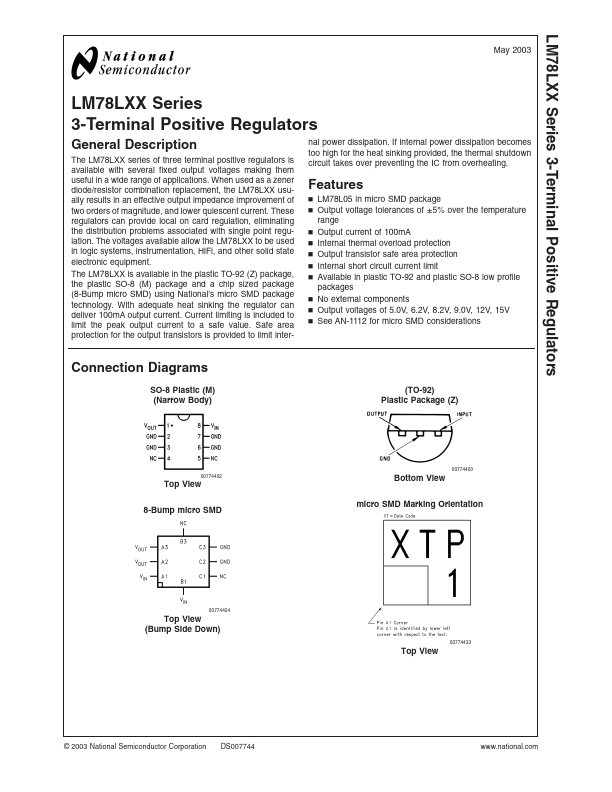

The LM78LXX series of three terminal positive regulators is available with several fixed output voltages making them useful in a wide range of applications.

Features

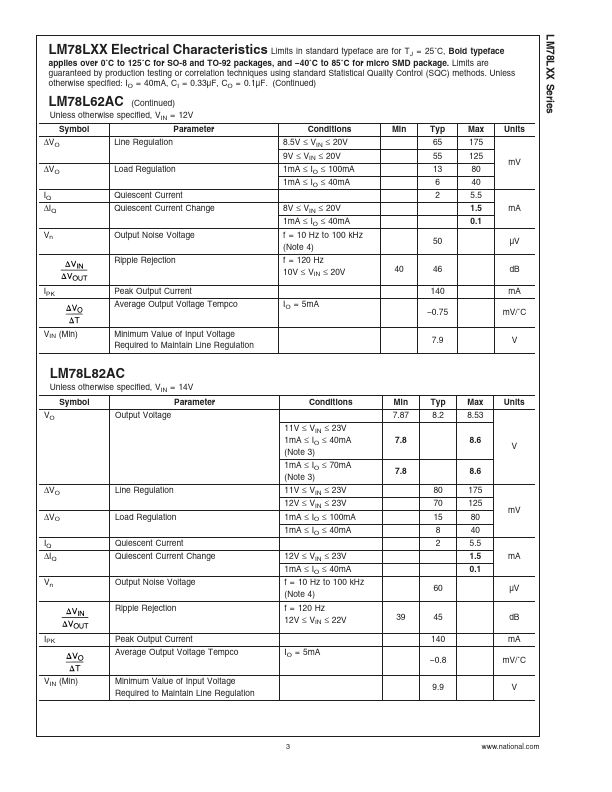

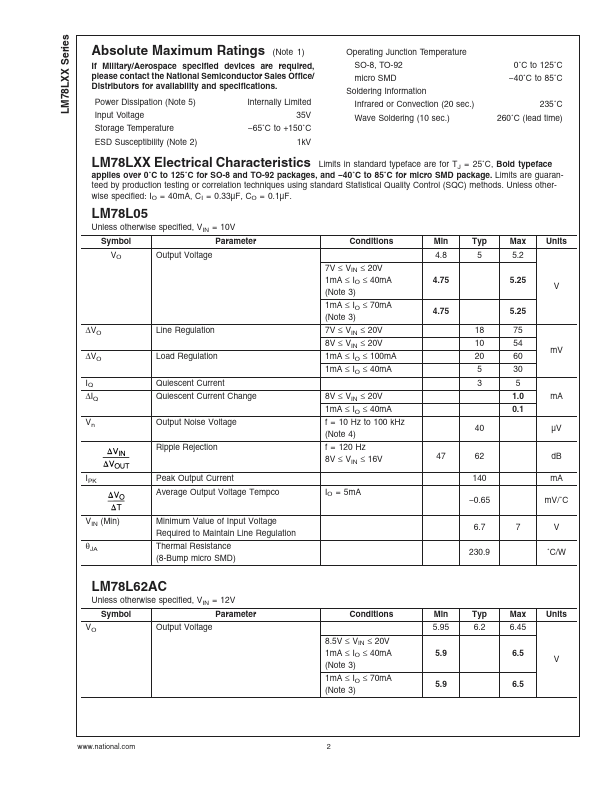

n LM78L05 in micro SMD package n Output voltage tolerances of ±5% over the temperature range n Output current of 100mA n Internal thermal overload protection n Output transistor safe area protection n Internal short circuit current limit n Available in plastic TO-92 and plastic SO-8 low profile packages n No external components n Output voltages of 5.0V, 6.2V, 8.2V, 9.0V, 12V, 15V n See AN-1112 for micro SMD considerations Connection Diagrams SO-8 Plastic (M) (Narrow Body) (TO-92) Plastic Pack.
