LM79CCVF Microprocessor System Hardware Monitor

LM79CCVF Description

LM79 Microprocessor System Hardware Monitor February 2000 LM79 Microprocessor System Hardware Monitor General .
The LM79 is a highly integrated Data Acquisition system for hardware monitoring of servers, Personal Computers, or virtually any microprocessor based.

LM79CCVF Features

* n n n n n n n n n Temperature sensing 5 positive voltage inputs 2 op amps for negative voltage monitoring 3 fan speed monitoring inputs Input for additional temperature sensors Chassis Intrusion Detector input WATCHDOG comparison of all monitored values POST code storage RAM ISA and I2C™ Serial Bus

LM79CCVF Applications

* n System Hardware Monitoring for Servers and PCs n Office Electronics n Electronic Test Equipment and Instrumentation Ordering Information Temperature Range
* 10˚C ≤ TA ≤ +100˚C Order Number LM79CCVF Device Marking LM79CCVF VGZ44A Package Connection Diagram # Indicates Active Low (“Not”)

📥 Download Datasheet

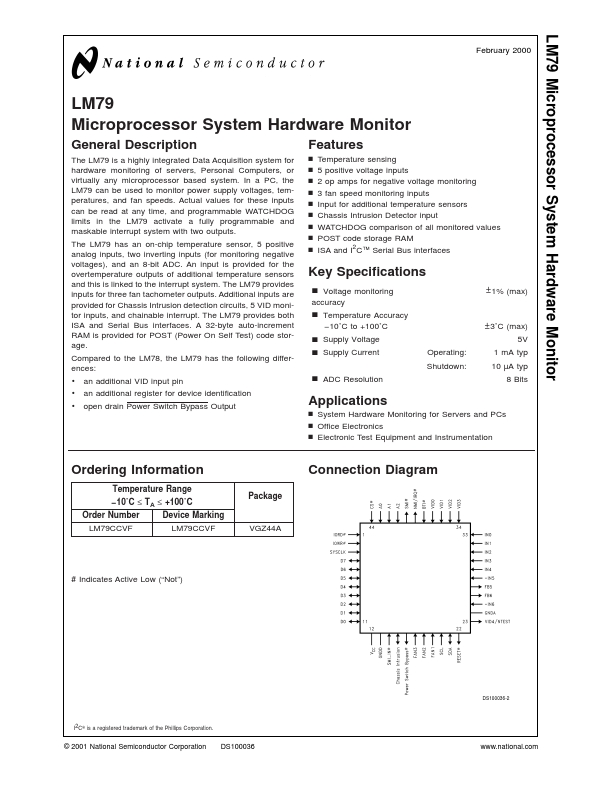

Preview of LM79CCVF PDF

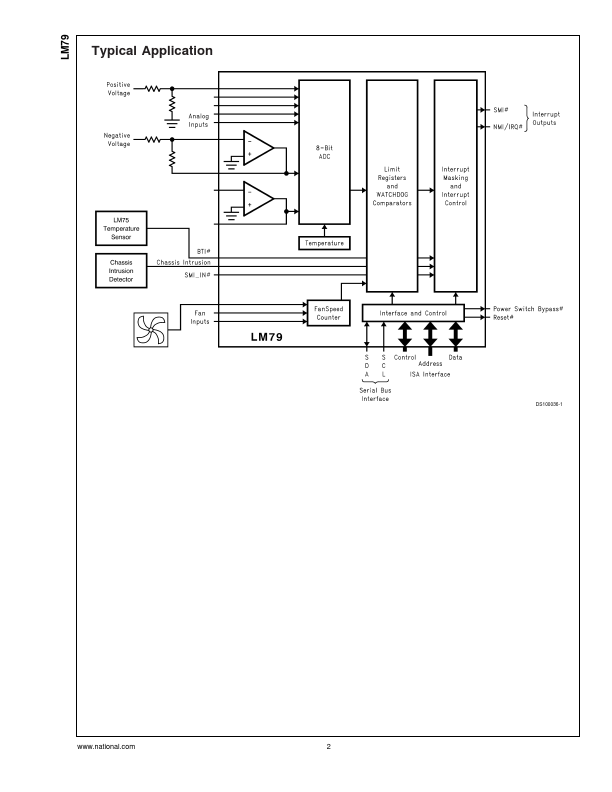

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LM79CCVF
Manufacturer
National Semiconductor
File Size
481.30 KB
Datasheet
LM79CCVF_NationalSemiconductor.pdf
Description
Microprocessor System Hardware Monitor
