LMH6626 - Single/Dual Ultra Low Noise Wideband Operational Amplifier

This page provides the datasheet information for the LMH6626, a member of the LMH6624 Single/Dual Ultra Low Noise Wideband Operational Amplifier family.

Description

with wide dynamic range.

Features

  • VS = ±6V, TA = 25˚C, AV = 20, (Typical values unless specified) n Gain bandwidth (LMH6624) 1.5GHz n Input voltage noise 0.92nV/ n Input offset voltage (limit over temp) 700uV n Slew rate 350V/µs n Slew rate (AV = 10) n HD2 @ f = 10MHz, RL = 100Ω n HD3 @ f = 10MHz, RL = 100Ω n Supply voltage range (dual supply) 400V/µs.
  • 63dBc.
  • 80dBc ±2.5V to ±6V n Supply voltage range (single supply) +5V to +12V n Improved replacement for the CLC425 (LMH6624) n Stable for closed lo.

📥 Download Datasheet

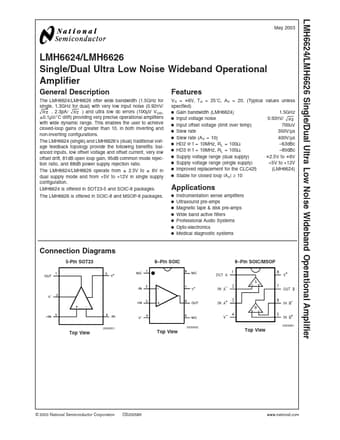

Datasheet preview – LMH6626
