LMH6715 Datasheet - National Semiconductor

Dual Wideband Video Op Amp

LMH6715 Features

* TA = 25˚C, RL = 100Ω, typical values unless specified. n Very low diff. gain, phase: 0.02%, 0.02˚ n Wide bandwidth: 480MHz (AV = +1V/V); 400MHz (AV = +2V/V) n 0.1dB gain flatness to 100MHz n Low power: 5.8mA/channel n

* 70dB channel-to-channel crosstalk (10MHz) n Fast slew rate: 1300V/µs n Un

LMH6715 General Description

The LMH6715 combines National’s VIP10™ high speed complementary bipolar process with National’s current feedback topology to produce a very high speed dual op amp. The LMH6715 provides 400MHz small signal bandwidth at a gain of +2V/V and 1300V/µs slew rate while consuming only 5.8mA per amplifier fr.

LMH6715 Datasheet (484.08 KB)

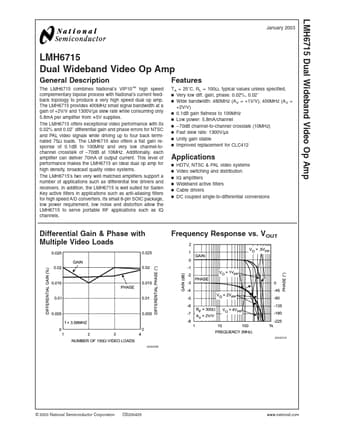

LMH6715 Datasheet Preview — Preview of LMH6715 PDF

Datasheet Details

Part number:

LMH6715

Manufacturer:

National Semiconductor

File Size:

484.08 KB

Description:

Dual wideband video op amp.
