LMV101

Fixed-Gain Amplifiers

LMV101 Features

* (For 5V Supply, Typical Unless Otherwise Noted) n Fixed inverting gain available

* 1,

* 2,

* 5,

* 10 n DC gain accuracy @2.7V supply

* LMV101/102/105 2% (typ)

* LMV110 6% (typ) n Space saving packages SC70-5 & SOT23-5 n Industrial temperature range

* 4

LMV101 General Description

The LMV101/102/105/110 fixed-gain amplifier family integrates a rail-to-rail op amp, two internal gain-setting resistors and a V+/2 bias circuit into one ultra tiny package, SC70-5 or SOT23-5. Fixed inverting gains of

*1,

*2,

*5, and

*10 are available. The core op amp.

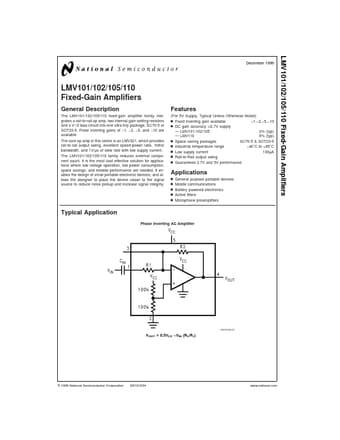

LMV101 Datasheet (769.70 KB)

Preview of LMV101 PDF

Datasheet Details

Part number:

LMV101

Manufacturer:

National Semiconductor

File Size:

769.70 KB

Description:

Fixed-gain amplifiers.
