LMV1022

PDM Output Pre-Amplifier

National Semiconductor

LMV1022 Features

* Integrated 21 dB Pre-Amp and ADC for significant power and space savings

* Integrated high-pass Filter to reduce 'Plop Noise'

* Excellent RF immunity (e.g. buzz noise)

* LMV1022 and LMV1023 combine to create 4-wire Stereo Solution

* Very thin 0.35mm micro SMD packaging

* Ad

LMV1022 General Description

The LMV1022 and LMV1023 integrate a pre-amplifier and ADC that can be mounted inside an electret condenser microphone (ECM). The digital output signal is a pulse density modulation (PDM) bitstream that alows the microphone to connect directly to the DSP or baseband processor. Part of National Semico.

LMV1022 Datasheet (582.21 KB)

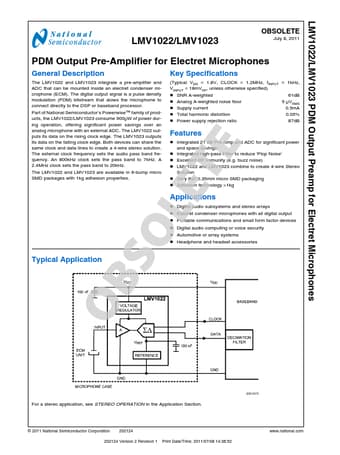

LMV1022 Datasheet Preview — Preview of LMV1022 PDF

Datasheet Details

Part number:

LMV1022

Manufacturer:

National Semiconductor

File Size:

582.21 KB

Description:

Pdm output pre-amplifier.
LMV1022/LMV1023 PDM Output Preamp for Electret Microphones LMV1022/LMV1023 OBSOLETE July 8, 2011 PDM Output Pre-Amplifier for Electret Microphones .
