LMX2487 High Performance Delta-Sigma Low Power Dual PLLatinum Frequency Synthesizers

The LMX2487 is a low power, high performance delta-sigma fractional-N PLL with an auxiliary integer-N PLL. It is fabricated using National Semiconductor’s advanced process. With delta-sigma architecture, fractional spurs at lower offset frequencies are pushed to higher frequencies outside the loop b.

LMX2487 Features

* Quadruple Modulus Prescalers for Lower Divide Ratios n RF PLL: 16/17/20/21 or 32/33/36/37 n IF PLL: 8/9 or 16/17 Advanced Delta Sigma Fractional Compensation n 12 bit or 22 bit selectable fractional modulus n Up to 4th order programmable delta-sigma modulator Features for Improved Lock Times and Pro

LMX2487 Datasheet (884.91 KB)

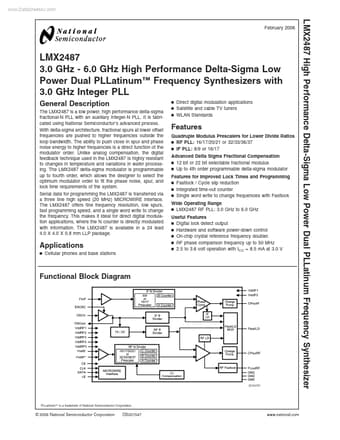

LMX2487 Datasheet Preview — Preview of LMX2487 PDF

Datasheet Details

Part number:

LMX2487

Manufacturer:

National Semiconductor

File Size:

884.91 KB

Description:

High performance delta-sigma low power dual pllatinum frequency synthesizers.
