LMX2430, LMX - Dual High Frequency Synthesizer

LMX2430 Description

LMX2430/LMX2433/LMX2434 PLLatinum Dual High Frequency Synthesizer for RF Personal Communications May 2003 LMX2430/LMX2433/LMX2434 PLLatinum™ Dual Hi.
The LMX243x devices are high performance frequency synthesizers with integrated dual modulus prescalers.

LMX2430 Features

* low current consumption: LMX2430 (3.0 GHz/ 0.8 GHz)
* 2.8 mA/ 1.4 mA, LMX2433 (3.6 GHz/ 1.7 GHz)
* 3.2 mA/ 2.0 mA, LMX2434 (5.0 GHz/ 2.5 GHz)
* 4.6 mA/ 2.4 mA at 2.50V. The LMX243x devices are available in 20-Pin TSSOP and 20-Pin UTCSP surface mount plastic packages. Feature

LMX2430 Applications

* n Mobile Handsets (GSM, GPRS, W-CDMA, CDMA, PCS, AMPS, PDC, DCS) n Cordless Handsets (DECT, DCT) n Wireless Data n Cable TV Tuners Thin Shrink Small Outline Package (MTC20) Ultra Thin Chip Scale Package (SLE20A) 20053580 20053581 PLLatinum™ is a trademark of National Semiconductor Corporation.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: LMX2430, LMX. Please refer to the document for exact specifications by model.

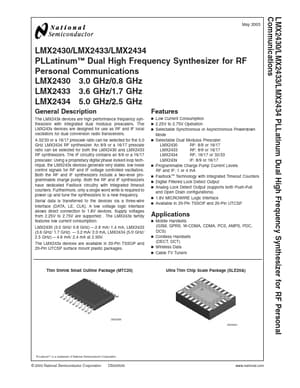

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LMX2430, LMX
Manufacturer
National Semiconductor
File Size
943.14 KB
Datasheet
LMX-2430.pdf
Description
Dual High Frequency Synthesizer
Note
This datasheet PDF includes multiple part numbers: LMX2430, LMX.
Please refer to the document for exact specifications by model.
