LMX2433 Datasheet - National Semiconductor

LMX2433 Dual High Frequency Synthesizer

The LMX243x devices are high performance frequency synthesizers with integrated dual modulus prescalers. The LMX243x devices are designed for use as RF and IF local oscillators for dual conversion radio transceivers. A 32/33 or a 16/17 prescale ratio can be selected for the 5.0 GHz LMX2434 RF synthe.

LMX2433-NationalSemiconductor.pdf

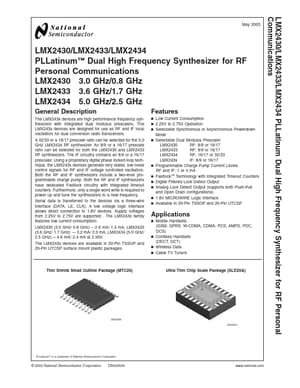

Preview of LMX2433 PDF
LMX2433 Datasheet Preview Page 2 LMX2433 Datasheet Preview Page 3

Datasheet Details

Part number:

LMX2433

Manufacturer:

National Semiconductor

File Size:

917.29 KB

Description:

Dual high frequency synthesizer.
