MM74C32

Quad 2-Input OR Gate

MM74C32 Features

* Y Wide supply voltage range Y Guaranteed noise margin Y High noise immunity Y Low power TTL compatibility Connection Diagram Dual-In-Line Package February 1988 3 0V to 15V 1 0V 0 45V VCC (typ ) fan out of 2 driving 74L Top View Order Number MM54C32 or MM74C32 TL F 5881

* 1 C1995 Nation

MM74C32 General Description

Employing complementary MOS (CMOS) transistors to achieve low power and high noise margin these gates provide the basic functions used in the implementation of digital integrated circuit systems The N- and P-channel enhancement mode transistors provide a symmetrical circuit with output swings essent.

MM74C32 Datasheet (82.60 KB)

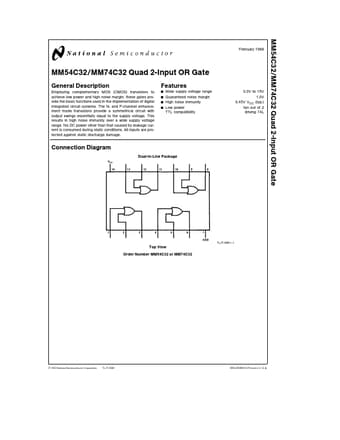

Preview of MM74C32 PDF

Datasheet Details

Part number:

MM74C32

Manufacturer:

National Semiconductor

File Size:

82.60 KB

Description:

Quad 2-input or gate.
