MN100314-X

LOW POWER QUINT DIFFERENTIAL LINE RECEIVER

MN100314-X Features

* 35% power reduction of the F100114 2000V ESD protection Pin/function compatible with 100114 Voltage compensated operating range = -4.2V to -5.7V Available to MIL-STD-883 Available to industrial grade temperature range 2 MN100314-X REV 1A0 MILITARY DATA SHEET (Absolute Maximum Ratings) (Note 1) S

MN100314-X General Description

The 100314 is a monolithic quint differential line receiver with emitter-follower outputs. An internal reference supply (Vbb) is available for single-ended reception. When used in single-ended operation, the only mode allowed is to connect the complementary inputs to Vbb. Unlike other F100K ECL devi.

MN100314-X Datasheet (106.30 KB)

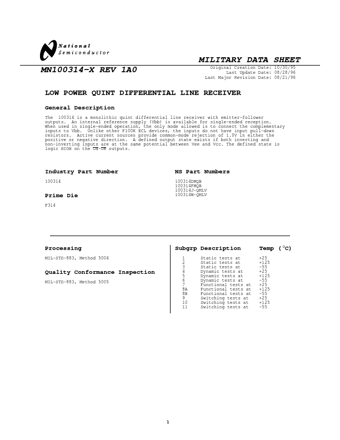

Preview of MN100314-X PDF

Datasheet Details

Part number:

MN100314-X

Manufacturer:

National Semiconductor

File Size:

106.30 KB

Description:

Low power quint differential line receiver.
MILITARY DATA SHEET MN100314-X REV 1A0 Original Creation Date: 10/30/95 Last Update Date: 08/28/96 Last Major Revision Date: 08/21/96 LOW POWER QUINT.
