NDF9405, NDF9401 Datasheet - National Semiconductor

NDF9405, NDF9401, N-Channel Monolithic Cascode Dual JFET

C a Process 94 NDF9401-10 N-Channel Monolithic Cascode Dual JFETs General .
The NDF9401 thru NDF9410 series of N-channel mono- lithic cascode duals is designed for broadband low noise differential amplifier applications requir.

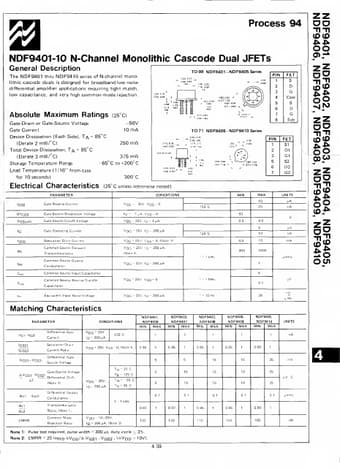

datasheet Preview Page 1 from Datasheet4u.com

NDF9401-NationalSemiconductor.pdf

NDF9405 Datasheet Preview — This datasheet PDF includes multiple part numbers: NDF9405, NDF9401. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

NDF9405, NDF9401

Manufacturer:

National Semiconductor

File Size:

36.25 KB

Description:

N-Channel Monolithic Cascode Dual JFET

Note:

This datasheet PDF includes multiple part numbers: NDF9405, NDF9401.
Please refer to the document for exact specifications by model.

Applications

* requiring tight match, low capacitance, and very high common-mode rejection. Absolute Maximum Ratings (25°o Gate-Drain or Gate-Source Voltage Gate Current
* 50V 10 mA Device Dissipation (Each Side), T/ = 85°C (Derate 2 mW/°C) Total Device Dissipation, T^ = 85°C (Derate 3 mW/°C) 250 mW 37
