DM86LS62

Dual Rank 8-Bit TRI-STATE Shift Register

DM86LS62 Features

* Y Y Y Y Y Y Y Y Y Registers are edge-triggered by the positive transition of the clock All inputs are PNP transistors Input disable dominates over output disable Output high impedance state does not impede any other mode of operation 8-bit I O pins are TRI-STATE buffers Typical shift frequency is

DM86LS62 General Description

These circuits are TRI-STATE edge-triggered 8-bit I O registers in parallel with 8-bit serial shift registers which are capable of operating in any of the following modes parallel load from I O pins to register ‘‘A’’ parallel transfer down from register ‘‘A’’ to serial shift register ‘‘B’’ parallel .

DM86LS62 Datasheet (157.99 KB)

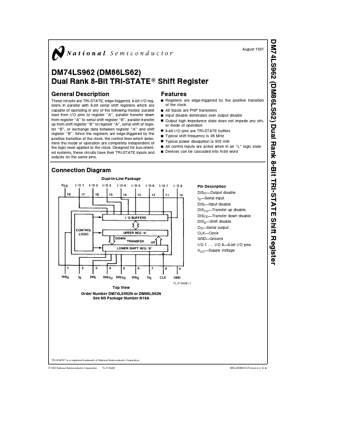

Preview of DM86LS62 PDF

Datasheet Details

Part number:

DM86LS62

Manufacturer:

National

File Size:

157.99 KB

Description:

Dual rank 8-bit tri-state shift register.
DM74LS962 (DM86LS62) Dual Rank 8-Bit TRI-STATE Shift Register August 1991 DM74LS962 (DM86LS62) Dual Rank 8-Bit TRI-STATE Shift Register General Desc.
