MM74C195 Datasheet - National

MM74C195, 4-Bit Registers

MM54C195 MM74C195 4-Bit Registers February 1988 MM54C195 MM74C195 4-Bit Registers General .
The MM54C195 MM74C195 CMOS 4-bit registers feature parallel inputs parallel outputs J-K serial inputs shift load control input and a direct overriding.

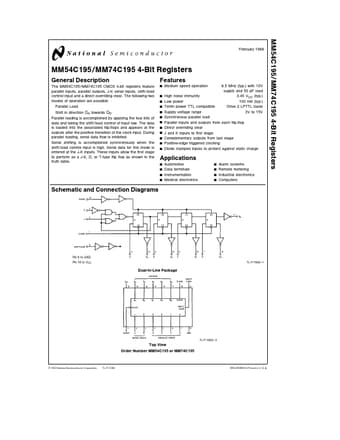

datasheet Preview Page 1 from Datasheet4u.com

MM74C195_NationalSemiconductor.pdf

MM74C195 Datasheet Preview — Preview of MM74C195 PDF

Datasheet Details

Part number:

MM74C195

Manufacturer:

National

File Size:

127.26 KB

Description:

4-Bit Registers

Features

* Y Medium speed operation Y Y Y Y Y Y Y Y Y Y Y High noise immunity Low power Tenth power TTL compatible Supply voltage range Synchronous parallel load Parallel inputs and outputs from each flip-flop Direct overriding clear J and K inputs to first stage Complementary outputs from last stage Positi

Applications

* Y Y Y Y Automotive Data terminals Instrumentation Medical electronics Y Y Y Y Alarm systems Remote metering Industrial electronics Computers Schematic and Connection Diagrams Pin 8 to GND Pin 16 to VCC TL F 5902
* 1 Dual-In-Line Package TL F 5902
* 2 Top View Order Number MM5
