NV6136C Datasheet - Navitas

GaNFast Power IC

NV6136C Features

* GaNFast™ Power IC

* Monolithically-integrated gate drive

* Wide VCC range (10 to 30 V)

* Programmable turn-on dV/dt

* 200 V/ns dV/dt immunity

* 800 V Transient Voltage Rating

* 700 V Continuous Voltage Rating

* Low 170 mΩ resistance

* Z

NV6136C General Description

This GaNFast™ power IC integrates a high performance eMode GaN FET with integrated gate drive to achieve unprecedented high-frequency and high efficiency operation. GaNSense™ technology is also integrated which enables real-time, accurate sensing of voltage, current and temperature to further improv.

NV6136C Datasheet (1.86 MB)

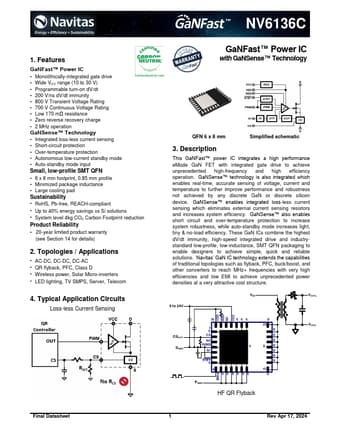

Preview of NV6136C PDF

Datasheet Details

Part number:

NV6136C

Manufacturer:

Navitas

File Size:

1.86 MB

Description:

Ganfast power ic.
