NV6269C - Half Bridge Power IC

Navitas

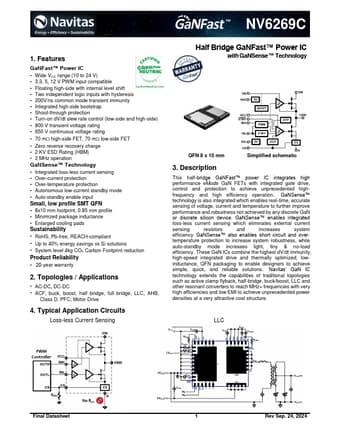

NV6269C Datasheet Preview — Preview of NV6269C PDF

Datasheet Details

Part number	NV6269C
Manufacturer	Navitas
File Size	2.70 MB
Description	Half Bridge Power IC
Datasheet	NV6269C-Navitas.pdf

NV6269C Product details

Description

This half-bridge GaNFast™ power IC integrates high performance eMode GaN FETs with integrated gate drive, control and protection to achieve unprecedented high- frequency and high efficiency operation.GaNSense™ technology is also integrated which enables real-time, accurate sensing of voltage, current and temperature to further improve performance and robustness not achieved by any discrete GaN or discrete silicon device.GaNSense™ enables integrated loss-less current sensing which elim

Features

GaNFast™ Power IC.
Wide VCC range (10 to 24 V).
3.3, 5, 12 V PWM input compatible.
Floating high-side with internal level shift.
Two independent logic inputs with hysteresis.
200V/ns common mode transient immunity.
Integrated high-side bootstrap.
Shoot-through protection.
Turn-on dV/dt slew rate control (low-side and high-side).
800 V transient voltage rating.
650 V continuous voltage rating.
70 mΩ.

📁 NV6269C Similar Datasheet

Other Datasheets by Navitas

NV6245C - Half Bridge Power IC
NV6247C - Half Bridge Power IC
NV6252 - Power IC
NV6113 - Power IC
NV6115 - Power IC
NV6117 - Power IC

Published: Dec 20, 2024 |
