NKSD600-100 Datasheet - Nell Semiconductor

NKSD600-100, 600A 100V Schottky Rectifier

NKSD600-100 Series RRooHHSS Nell High Power Products Schottky Rectifier 600A/100V (300A x 2/100V) .
The NKSD600 Schottky rectifier common cathode module series has been optimized for low reverse leakage at high temperature.

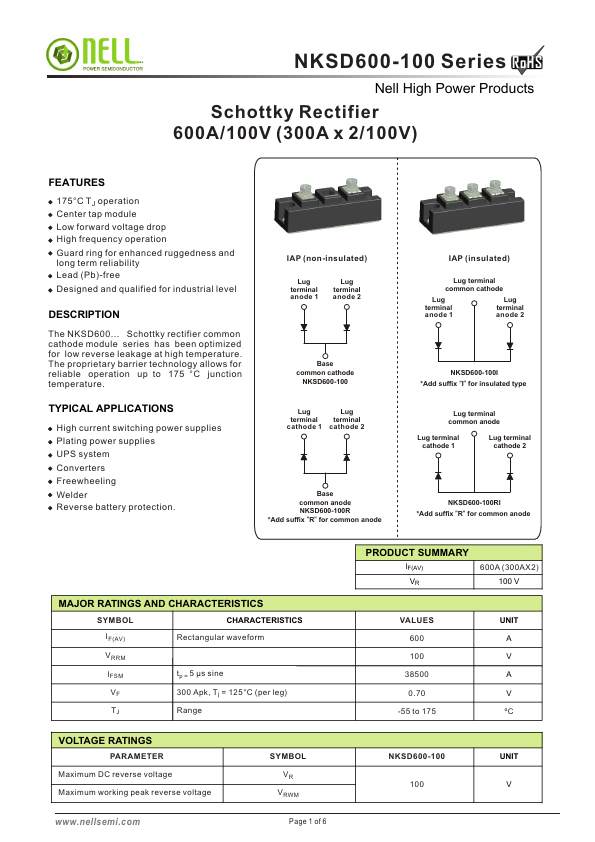

datasheet Preview Page 1 from Datasheet4u.com

NKSD600-100-NellSemiconductor.pdf

Preview of NKSD600-100 PDF

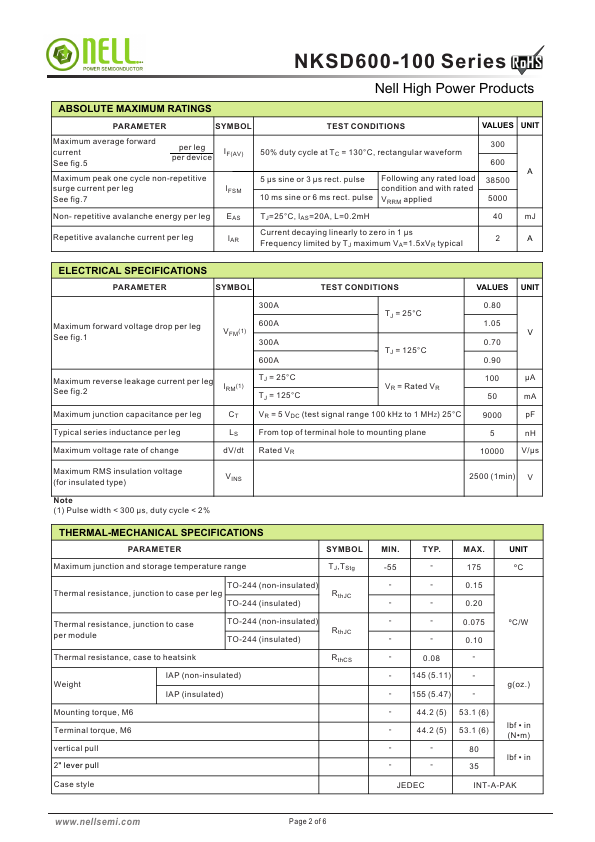

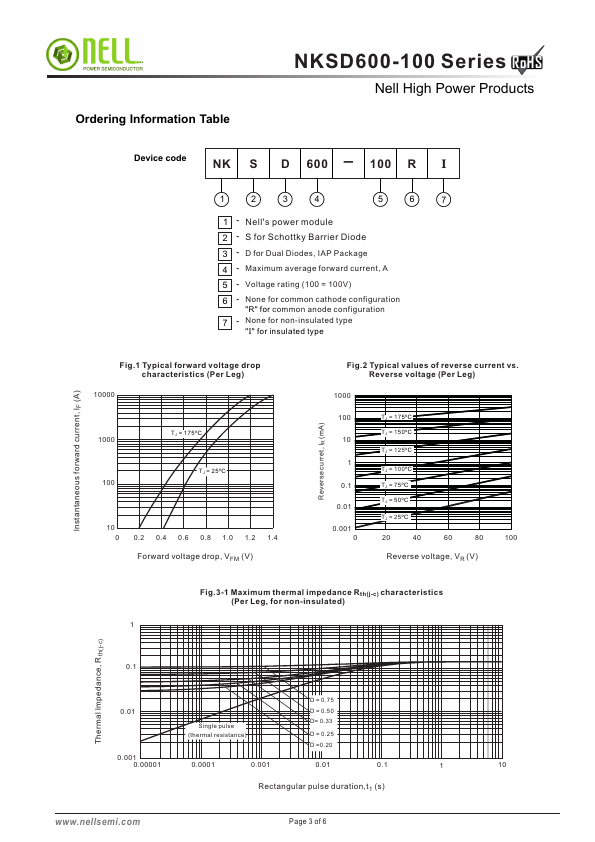

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number:

NKSD600-100

Manufacturer:

Nell Semiconductor

File Size:

736.80 KB

Description:

600A 100V Schottky Rectifier

Applications

* High current switching power supplies Plating power supplies UPS system Converters Freewheeling Welder Reverse battery protection. IAP (non-insulated) Lug terminal anode 1 Lug terminal anode 2 Base common cathode NKSD600-100 Lug Lug terminal terminal cathode 1 cathode 2 Base common anode NKS
