NJG1151MD7 Datasheet - New Japan Radio

NJG1151MD7_NewJapanRadio.pdf

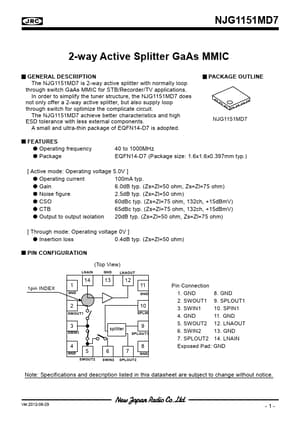

Preview of NJG1151MD7 PDF
NJG1151MD7 Datasheet Preview Page 2 NJG1151MD7 Datasheet Preview Page 3

Datasheet Details

Part number:

NJG1151MD7

Manufacturer:

New Japan Radio

File Size:

959.43 KB

Description:

2-way active splitter gaas mmic.

NJG1151MD7, 2-way Active Splitter GaAs MMIC

The NJG1151MD7 is 2-way active splitter with normally loop through switch GaAs MMIC for STB/Recorder/TV applications.

In order to simplify the tuner structure, the NJG1151MD7 does not only offer a 2-way active splitter, but also supply loop through switch for optimize the complicate circuit.

The NJG

NJG1151MD7 Features

* G Operating frequency G Package [ Active mode: Operating voltage G Operating current G Gain G Noise figure G CSO G CTB G Output to output isolation I PACKAGE OUTLINE NJG1151MD7 40 to 1000MHz EQFN14-D7 (Package size: 1.6x1.6x0.397mm typ.) 5.0V ] 100mA typ. 6.0dB typ. (Zs=Zl=50 ohm, Zs=Zl=75 ohm) 2.
