NJG1152KA1

Wide Band Low Noise Amplifier GaAs MMIC

NJG1152KA1 Features

* G Operating frequency 40 to 900MHz G Package size FLP6-A1 (Package size: 1.6x1.6x0.55mm typ.) [ LNA mode, 50 ohm: Operating voltage 3.3V ] G Operating current 20mA typ. 18.0dB typ. G Small signal gain G Noise figure 1.2dB typ. @f=40 to 150MHz 0.9dB typ. @f=150 to 900MHz [ Bypass mode, 50 ohm: Operat

NJG1152KA1 General Description

The NJG1152KA1 is a fully matched wide band low noise amplifier GaAs MMIC for digital TV applications. To achieve wide dynamic range, the NJG1152KA1 offers high gain mode and low gain mode. Selecting high gain mode for weak signals, the NJG1152KA1 helps improve receiver sensitivity through high gain.

NJG1152KA1 Datasheet (654.45 KB)

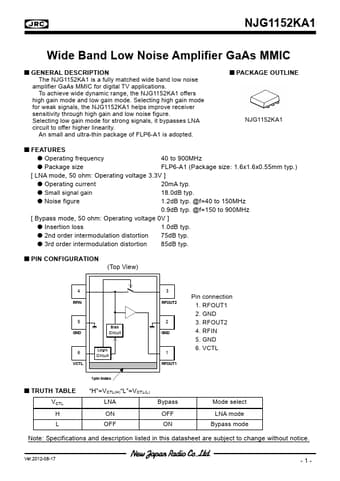

Preview of NJG1152KA1 PDF
