NJM78L00 3-TERMINAL POSITIVE VOLTAGE REGULATOR

NJM78L00 Features

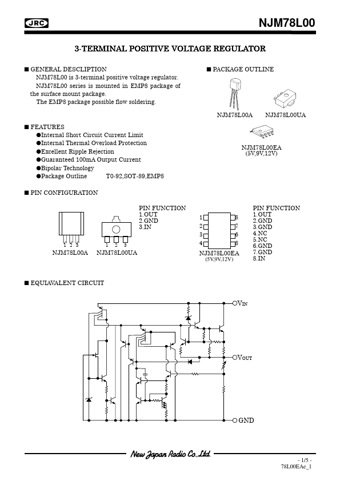

* qInternal Short Circuit Current Limit qInternal Thermal Overload Protection qExcellent Ripple Rejection qGuaranteed 100mA Output Current qBipolar Technology T0-92,SOT-89,EMP8 qPackage Outline s PIN CONFIGURATION PIN FUNCTION 1.OUT 2.GND 3.IN 1 2 3 1 2 3 NJM78L00UA NJM78L00EA (5V,9V,12V) 1 2 3 4
