NJW1194 - 2-CHANNEL ELECTRONIC VOLUME

New Japan Radio

📥 Download Datasheet

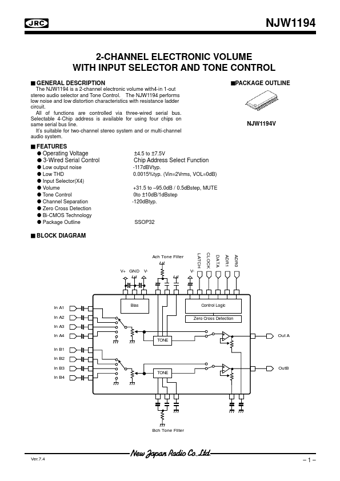

NJW1194 Datasheet Preview — Preview of NJW1194 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	NJW1194
Manufacturer	New Japan Radio
File Size	248.15 KB
Description	2-CHANNEL ELECTRONIC VOLUME
Datasheet	NJW1194_NewJapanRadio.pdf

NJW1194 Product details

Description

The NJW1194 is a 2-channel electronic volume with4-in 1-out stereo audio selector and Tone Control.

Features

q Operating Voltage q 3-Wired Serial Control q Low output noise q Low THD q Input Selector(X4) q Volume q Tone Control q Channel Separation q Zero Cross Detection q Bi-CMOS Technology q Package Outline ±4.5 to ±7.5V Chip Address Select Function -117dBVtyp. 0.0015%typ. (Vin=2Vrms, VOL=0dB) +31.5 to.
95.0dB / 0.5dBstep, MUTE 0to ±10dB/1dBstep -120dBtyp. SSOP32 s BLOCK.
