NJW1199

8-Channel Electronic Volume

NJW1199 Features

* q Operating Voltage q 3-Wired Serial Control q 13-input 4-output stereo selector q Multi-Channel input (8ch x 2) q Input Selector Gain Control q Volume q Bi-CMOS Technology q Package Outline REC A REC B s PACKAGE OUTLINE NJW1199FC2 ±4.5 to ±7.5V Chip Address Select Function Gain : 0/-3/-6/-9/-12

NJW1199 General Description

The NJW1199 is a 8-channel electronic volume with Input Selector. It includes 13-in 4-out stereo audio selector , REC Output and Multi-channel inputs. The NJW1199 performs low noise and low distortion characteristics with resistance ladder circuit. All of functions are controlled via three-wired ser.

NJW1199 Datasheet (74.75 KB)

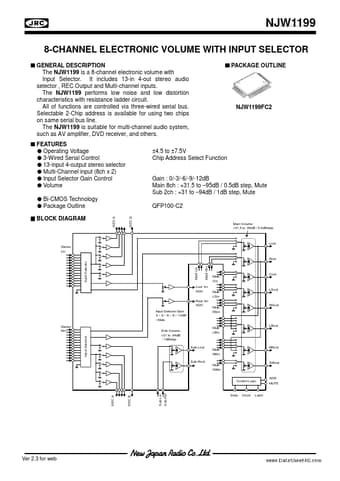

Preview of NJW1199 PDF

Datasheet Details

Part number:

NJW1199

Manufacturer:

New Japan Radio

File Size:

74.75 KB

Description:

8-channel electronic volume.
