NMH2409 Datasheet, Output, Newport Components

NMH2409 Features

  • Output p Full 2 Watt Output Power p Pin Compatible with NMA p 1kVDC Isolation p Dual Outputs p SIP & DIP package Styles p Efficiency to 80% p Power Density 1.42W/cm3 p 5V, 12V, 24V & 48V Input

PDF File Details

Part number:

NMH2409

Manufacturer:

Newport Components

File Size:

221.55kb

Download:

📄 Datasheet

Description:

Isolated 2w dual output. The NMH Series of DC-DC Converters offer the smallest footprint of any dual-output 2 Watt DC-DC Converter. Pin compatibility with the

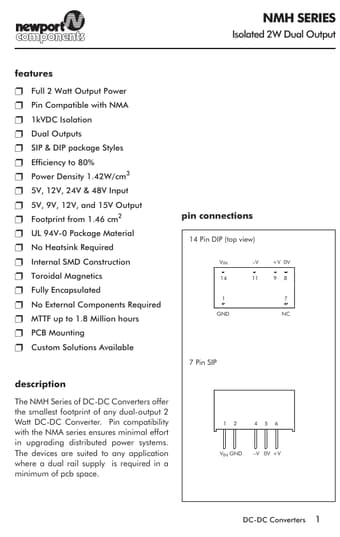

Datasheet Preview: NMH2409 📥 Download PDF (221.55kb)
Page 2 of NMH2409 Page 3 of NMH2409
