NMH2409S, NMH-0505 Isolated 2W Dual Output DC-DC Converters

NMH2409S Description

NMH SERIES Isolated 2W Dual Output DC-DC Converters .
The NMH series of industrial temperature range DC-DC converters are the standard building blocks for on-board point-of-use power systems.

NMH2409S Features

* p Wide Temperature performance at full 2 Watt load,
* 40°C to 85°C p Dual Output from a Single Input Rail p Industry Standard Pinout p Power Sharing on Output p 1kVDC Isolation p Efficiency to 86% p Power Density up to 1.44W/cm! p 5V, 12V, 24V & 48V Input p 5V, 9V,12V and 15V Output p Footpri

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: NMH2409S, NMH-0505. Please refer to the document for exact specifications by model.

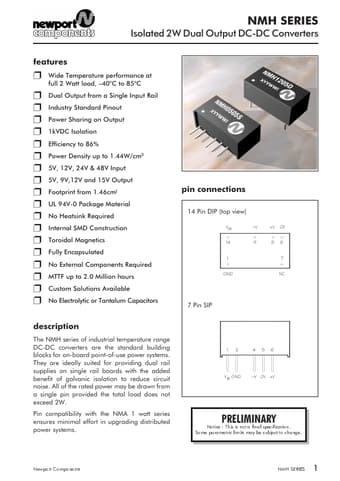

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
NMH2409S, NMH-0505
Manufacturer
Newport Components
File Size
421.46 KB
Datasheet
NMH-0505-D.pdf
Description
Isolated 2W Dual Output DC-DC Converters
Note
This datasheet PDF includes multiple part numbers: NMH2409S, NMH-0505.
Please refer to the document for exact specifications by model.
