NMA1212S

Isolated 1W Dual Output DC-DC Converters

NMA1212S Features

* p p p p p p p p p p p p p p p p p p p Wide Temperature performance at full 1 Watt load,

* 40°C to 85°C Dual Output from a Single Input Rail Industry Standard Pinout Power Sharing on Output 1kVDC Isolation Efficiency to 78% Power Density upto 0.85W/cm! 5V & 12V Input 5V, 9V, 12V and 15V Output

NMA1212S General Description

The NMA series of industrial temperature range DC-DC converters are the standard building blocks for on-board distributed power systems. They are ideally suited for providing dual rail supplies on primarily digital boards with the added benefit of galvanic isolation to reduce switching noise. All of.

NMA1212S Datasheet (441.21 KB)

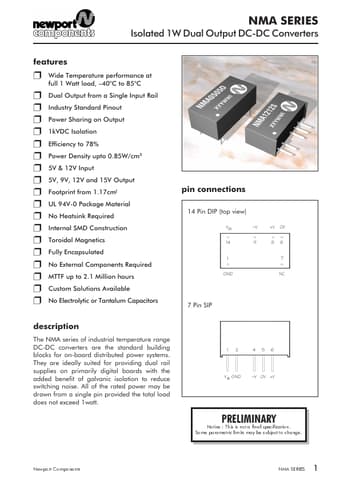

Preview of NMA1212S PDF

Datasheet Details

Part number:

NMA1212S

Manufacturer:

Newport

File Size:

441.21 KB

Description:

Isolated 1w dual output dc-dc converters.
