SB1045L000S045 - SMD Schottky Barrier Rectifier

📥 Download Datasheet

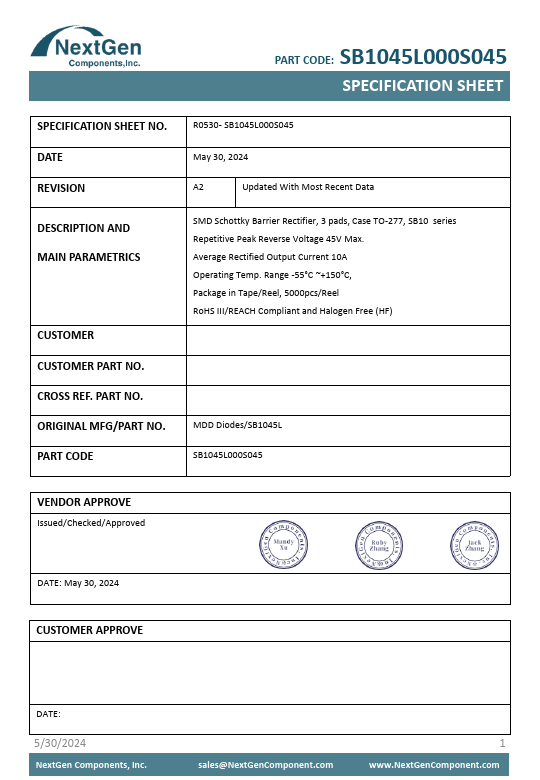

Preview of SB1045L000S045 PDF

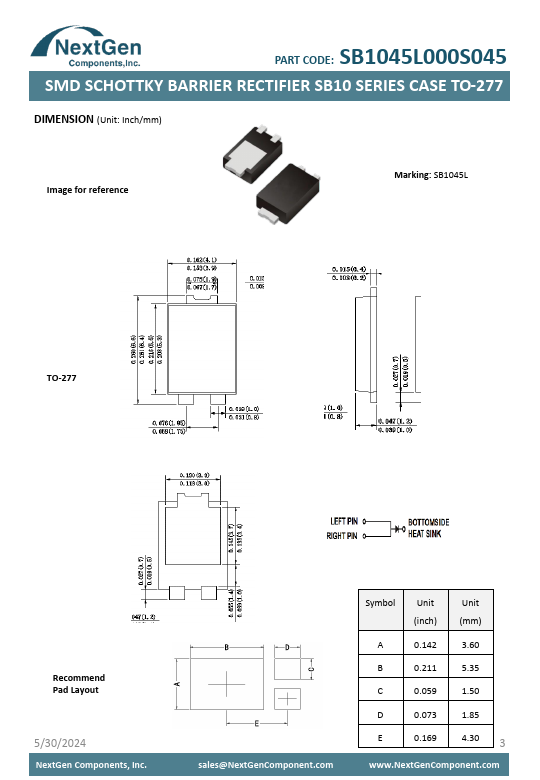

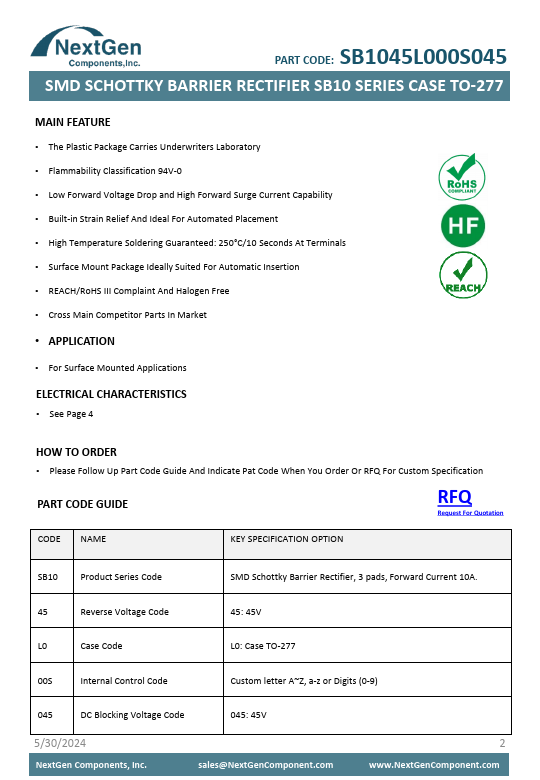

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number SB1045L000S045
Manufacturer NextGen
File Size 609.80 KB
Description SMD Schottky Barrier Rectifier
Datasheet download datasheet SB1045L000S045-NextGen.pdf

SB1045L000S045 Product details

Description

AND MAIN PARAMETRICS CUSTOMER CUSTOMER PART NO.CROSS REF.PART NO.ORIGINAL MFG/PART NO.PART CODE SMD Schottky Barrier Rectifier, 3 pads, Case TO-277, SB10 series Repetitive Peak Reverse Voltage 45V Max.Average Rectified Output Current 10A Operating Temp.Range -55°C ~+150°C, Package in Tape/Reel, 5000pcs/Reel RoHS III/REACH Compliant and Halogen Free (HF) MDD Diodes/SB1045L SB1045L000S045 VENDOR APPROVE Issued/Checked/Approved DATE: May 30, 2024 CUSTOMER APPROVE DATE: 5/30/2024 NextGen C
