SB1045D - 10A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER

Product Overview

WON-TOP

📥 Download Datasheet

SB1045D 10A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER by WON-TOP - Datasheet Preview — Datasheet preview – SB1045D

Datasheet Details

Part number	SB1045D
Manufacturer	WON-TOP
File Size	41.94 KB
Description	10A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER
Datasheet	SB1045D Datasheet
Note	This datasheet PDF includes multiple part numbers: SB1045D, SB1020D-WON. Please refer to the document for exact specifications by model.

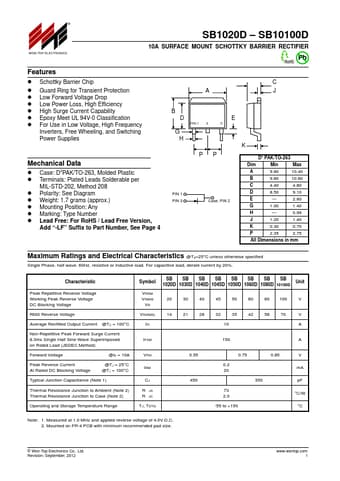

Additional preview pages of the SB1045D datasheet.

Product details

Features

Schottky Barrier Chip.
Guard Ring for Transient Protection.
Low Forward Voltage Drop.
Low Power Loss, High Efficiency.
High Surge Current Capability.
Epoxy Meet UL 94V-0 Classification.
For Use in Low Voltage, High Frequency Inverters, Free Wheeling, and Switching Power Supplies Mechanical Data.
Case: D2PAK/TO-263, Molded Plastic.
Terminals: Plated Leads Solderable per MIL-STD-202, Method 208.
Polarity: See Diagram.
Weight: 1.7 grams (appro.
