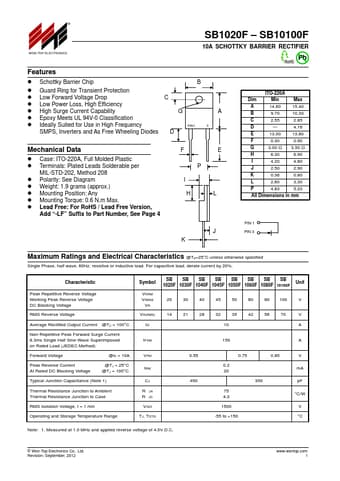

SB1040F, SB1020F-WON - 10A SCHOTTKY BARRIER RECTIFIER

WON-TOP

Datasheet Details

Part number: SB1040F, SB1020F-WON
Manufacturer: WON-TOP
File Size: 41.76 KB
Datasheet: SB1020F-WON-TOP.pdf
Description: 10A SCHOTTKY BARRIER RECTIFIER
Note: This datasheet PDF includes multiple part numbers: SB1040F, SB1020F-WON.
Please refer to the document for exact specifications by model.

Schottky Barrier Chip.
Guard Ring for Transient Protection.
Low Forward Voltage Drop.
Low Power Loss, High Efficiency.
High Surge Current Capability.
Epoxy Meets UL 94V-0 Classification.
Ideally Suited for Use in High Frequency SMPS, Inverters and As Free Wheeling Diodes C G D B PIN1 3 A Mechanical Data.
Case: ITO-220A, Full Molded Plastic.
Terminals: Plated Leads Solderable per MIL-STD-202, Method 208.
Polarity: See Diagram.
Weight: 1.
