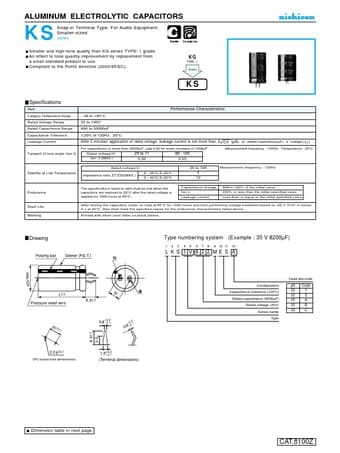

ALUMINUM ELECTROLYTIC CAPACITORS
KS Snap-in Terminal Type, For Audio Equipment, Smaller-sized series
Smaller and high-tone quality than KG series TYPE-1 grade. An effect to tone quallity improvement by replacement from a small standard product to use. Compliant to the RoHS directive (2002/95/EC).
KG
TYPE -1
Smaller
KS
Specifications
Item Category Temperature Range Rated Voltage Range Rated Capacitance Range Capacitance Tolerance Leakage Current
Tangent of loss angle (tan δ)
Performance Characteristics
– 40 to +85°C
25 to 100V
680 to 33000µF
± 20% at 120Hz, 20°C After 5 minutes' application of rated voltage, leakage current is not more than 3 CV (µA), [C : Rated Capacitance(µF), V : Voltage ( V ) ]
For capacitance of more than 22000µF, add 0.02 for every increase of 1000µF.
