C20T04Q Datasheet - Nihon Inter Electronics

C20T04Q SBD

20A Avg. 40 Volts SBD C20T04Q INSTANTANEOUS FORWARD CURRENT (A) AVERAGE REVERSE POWER DISSIPATION (W) 50 20 10 5 2 1 0 FORWARD CURRENT VS. VOLTAGE C20T04Q/C20T04Q-11A (per Arm) Tj=25°C Tj=150°C 0.2 0.4 0.6 0.8 INSTANTANEOUS FORWARD VOLTAGE (V) 1.0 1.2 AVERAGE FORWARD POWER DISSIPATION (W) 0° 180° θ CONDUCTION ANGLE 16 14 12 10 8 6 4 2 0 0 AVERAGE FORWARD POWER DISSIPATION C20T04Q/C20T04Q-11A (Total) RECT 180° SINE WAVE 4 8 12 16 20 24 AVERAGE FORWARD CURRENT (A) PEAK REVERSE CURRENT .

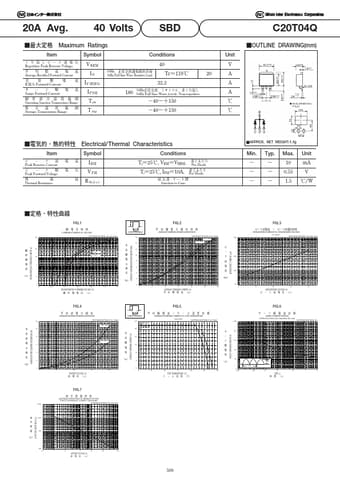

C20T04Q Datasheet (128.06 KB)

C20T04Q Datasheet Preview — Preview of C20T04Q PDF

Datasheet Details

Part number:

C20T04Q

Manufacturer:

Nihon Inter Electronics

File Size:

128.06 KB

Description:

Sbd.
