C20T04QH-11A Datasheet - Nihon Inter Electronics

C20T04QH-11A SBD

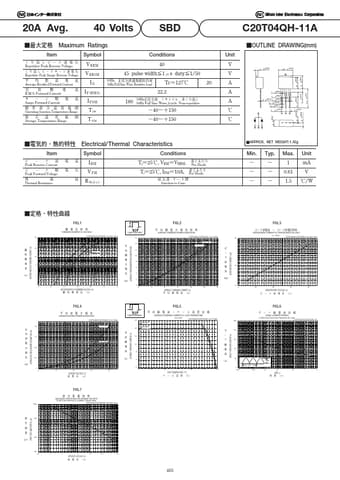

20A Avg. 40 Volts SBD C20T04QH-11A INSTANTANEOUS FORWARD CURRENT (A) AVERAGE REVERSE POWER DISSIPATION (W) 50 20 10 5 2 1 0 FORWARD CURRENT VS. VOLTAGE C20T04QH/C20T04QH-11A (per Arm) Tj=25°C Tj=150°C 0.2 0.4 0.6 0.8 INSTANTANEOUS FORWARD VOLTAGE (V) 1.0 1.2 AVERAGE FORWARD POWER DISSIPATION (W) 0° 180° θ CONDUCTION ANGLE 16 14 12 10 8 6 4 2 0 0 AVERAGE FORWARD POWER DISSIPATION C20T04QH/C20T04QH-11A (Total) RECT 180° SINE WAVE 4 8 12 16 20 24 AVERAGE FORWARD CURRENT (A) PEAK REVERSE.

C20T04QH-11A-NihonInterElectronics.pdf

Preview of C20T04QH-11A PDF

Datasheet Details

Part number:

C20T04QH-11A

Manufacturer:

Nihon Inter Electronics

File Size:

132.62 KB

Description:

Sbd.
