EC11FS4 Datasheet - Nihon Inter Electronics

EC11FS4 FRED

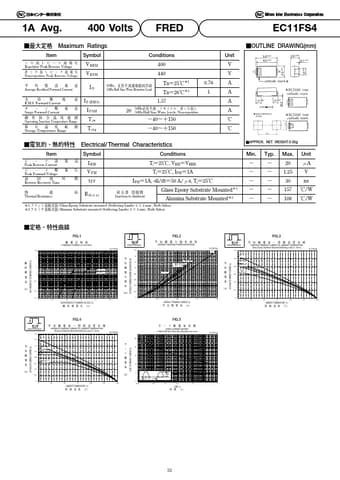

1A Avg. 400 Volts FRED EC11FS4 INSTANTANEOUS FORWARD CURRENT (A) 10 5 2 1 0.5 0.2 0.1 0 FORWARD CURRENT VS. VOLTAGE EC11FS4 Tj=25°C Tj=150°C 0.4 0.8 1.2 1.6 INSTANTANEOUS FORWARD VOLTAGE (V) 2.0 AVERAGE FORWARD POWER DISSIPATION (W) 0° 180° θ CONDUCTION ANGLE 1.6 1.4 1.2 1.0 0.8 0.6 0.4 0.2 0 0 AVERAGE FORWARD POWER DISSIPATION RECT 60° RECT 180° HALF SINE WAVE RECT 120° 0.4 0.8 AVERAGE FORWARD CURRENT (A) 1.2 EC11FS4 D.C. 1.6 0° 180° θ CONDUCTION ANGLE 1.2 AVERAGE FORWARD CURR.

EC11FS4-NihonInterElectronics.pdf

EC11FS4 Datasheet Preview — Preview of EC11FS4 PDF

Datasheet Details

Part number:

EC11FS4

Manufacturer:

Nihon Inter Electronics

File Size:

117.10 KB

Description:

Fred.
