EC1019 Datasheet - WJ Communication

InGaP HBT Gain Block

EC1019 Features

* x DC

* 4 GHz x +19 dBm P1dB at 1 GHz x +34 dBm OIP3 at 1 GHz x 20 dB Gain at 1 GHz x 5.5 dB Noise Figure at 2 GHz x Available in SOT-86, SOT-89 and lead-free / green SOT-89 Package Styles x Internally matched to 50 : Applications x Mobile Infrastructure x CATV / DBS x W-LAN / ISM x RFID x De

EC1019 General Description

The EC1019 is a general-purpose buffer amplifier that offers high dynamic range in a low-cost surface-mount package. At 1000 MHz, the EC1019 typically provides 20 dB of gain, +34 dBm Output IP3, and +19 dBm P1dB. The EC1019 consists of Darlington pair amplifiers using the high reliability InGaP/GaAs.

EC1019 Datasheet (316.18 KB)

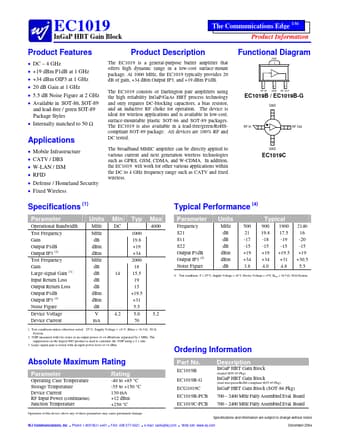

EC1019 Datasheet Preview — Preview of EC1019 PDF

Datasheet Details

Part number:

EC1019

Manufacturer:

WJ Communication

File Size:

316.18 KB

Description:

Ingap hbt gain block.
