EC103D2 Datasheet, Scr, Littelfuse

EC103D2 Features

• Scr
• RoHS compliant
• Voltage capability up to 600 V
• Glass
    –passivated junctions
• Surge capability up to 20 A Applications: Typical a

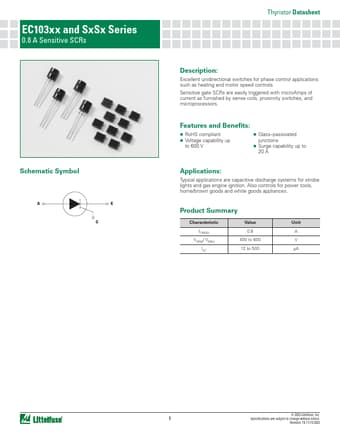

PDF File Details

Part number:

EC103D2

Manufacturer:

Littelfuse ↗

File Size:

775.18kb

Download:

📄 Datasheet

Description:

0.8a sensitive scr. Excellent unidirectional switches for phase control applications such as heating and motor speed controls. Sensitive gate SCRs are e

EC103D2 Application

• Applications such as heating and motor speed controls. Sensitive gate SCRs are easily triggered with microAmps of current as furnished by sense coil
