EC103M3 Datasheet, Scr, Littelfuse

EC103M3 Features

  • Scr
  • RoHS compliant
  • Voltage capability up to 600 V
  • Glass
      â€“passivated junctions
  • Surge capability up to 20 A Applications: Typical a

PDF File Details

Part number:

EC103M3

Manufacturer:

Littelfuse ↗

File Size:

775.18kb

Download:

📄 Datasheet

Description:

0.8a sensitive scr. Excellent unidirectional switches for phase control applications such as heating and motor speed controls. Sensitive gate SCRs are e

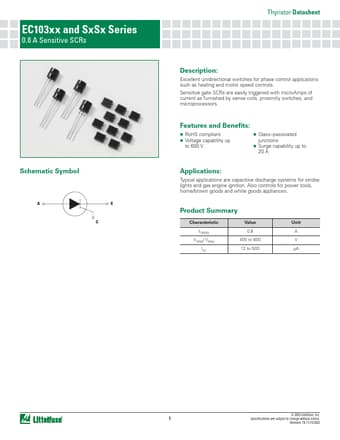

Datasheet Preview: EC103M3 📥 Download PDF (775.18kb)
Page 2 of EC103M3 Page 3 of EC103M3

EC103M3 Application

  • Applications such as heating and motor speed controls. Sensitive gate SCRs are easily triggered with microAmps of current as furnished by sense coil
