EC103D1 - Thyristors

Description

Excellent unidirectional switches for phase control applications such as heating and motor speed controls.

Sensitive gate SCRs are easily triggered with microAmps of current as furnished by sense coils, proximity switches, and microprocessors.

Features

  • Symbol IT(RMS) VDRM/ VRRM IGT Value 0.8 400 to 600 12 to 500 Schematic Symbol Unit A V μA AK G Absolute Maximum Ratings.
  • Sensitive SCRs Symbol IT(RMS) IT(AV) Parameter RMS on-state current Average on-state current ITSM Peak non-repetitive surge current I2t di/dt IGM PG(AV) Tstg TJ I2t Value for fusing Critical rate of rise of on-state current Peak gate current Average gate power dissipation Storage temperature range Operating junction temperature range © 2018 Littelfuse, Inc.

📥 Download Datasheet

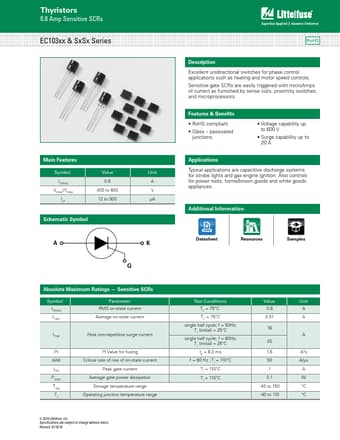

Datasheet preview – EC103D1

Datasheet Details

Part number EC103D1
Manufacturer Littelfuse
File Size 775.18 KB
Description Thyristors
Datasheet download datasheet EC103D1 Datasheet
Additional preview pages of the EC103D1 datasheet.

📁 Similar Datasheet

Other Datasheets by Littelfuse

Full PDF Text Transcription

Click to expand full text
Thyristors 0.8 Amp Sensitive SCRs EC103xx & SxSx Series Main Features Symbol IT(RMS) VDRM/ VRRM IGT Value 0.8 400 to 600 12 to 500 Schematic Symbol Unit A V μA AK G Absolute Maximum Ratings — Sensitive SCRs Symbol IT(RMS) IT(AV) Parameter RMS on-state current Average on-state current ITSM Peak non-repetitive surge current I2t di/dt IGM PG(AV) Tstg TJ I2t Value for fusing Critical rate of rise of on-state current Peak gate current Average gate power dissipation Storage temperature range Operating junction temperature range © 2018 Littelfuse, Inc. Specifications are subject to change without notice. Revised: 01/16/18 RoHS Description Excellent unidirectional switches for phase control applications such as heating and motor speed controls.
