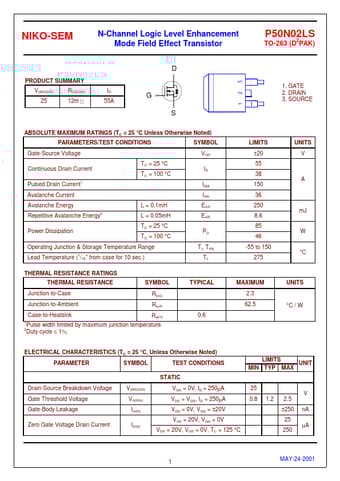

P50N02LS Datasheet Preview Page 2 P50N02LS Datasheet Preview Page 3

Datasheet Details

Part number:

P50N02LS, P50N02LS-Niko

Manufacturer:

Niko-Sem

File Size:

45.18 KB

Description:

N-channel mosfet.

Note:

This datasheet PDF includes multiple part numbers: P50N02LS, P50N02LS-Niko.
Please refer to the document for exact specifications by model.

P50N02LS, P50N02LS-Niko, N-Channel MOSFET

NIKO-SEM N-Channel Logic Level Enhancement Mode Field Effect Transistor P50N02LS TO-263 (D2PAK) PRODUCT SUMMARY V(BR)DSS RDS(ON) 25 12mΩ ID 55A D G S 1.

GATE 2.

DRAIN 3.

SOURCE ABSOLUTE MAXIMUM RATINGS (TC = 25 °C Unless Otherwise Noted) PARAMETERS/TEST CONDITIONS SYMBOL Gate-Source Voltage Continuous Drain Current Pulsed Drain Current1 TC = 25 °C TC = 100 °C Avalanche Current Avalanche Energy Repetitive Avalanche Energy2 L = 0.1mH L = 0.05mH Power Dissipation TC = 25 °C TC
