P50N03LTG Datasheet - UNIKC

P50N03LTG N-Channel MOSFET

P50N03LTG N-Channel Logic Level Enhancement Mode MOSFET PRODUCT SUMMARY V(BR)DSS RDS(ON) ID 25V 10mΩ @VGS = 10V 60A TO-220 ABSOLUTE MAXIMUM RATINGS (TC = 25 °C Unless Otherwise Noted) PARAMETERS/TEST CONDITIONS SYMBOL LIMITS Gate-Source Voltage VGS ±20 Continuous Drain Current Pulsed Drain Current1 TC = 25 °C TC = 100 °C ID 60 38 IDM 150 Avalanche Current IAS 36 Avalanche Energy L = 0.1mH EAS 65 Power Dissipation TC = 25 °C PD 52 TC = 100 °C 21 Operating Juncti.

P50N03LTG Datasheet (467.05 KB)

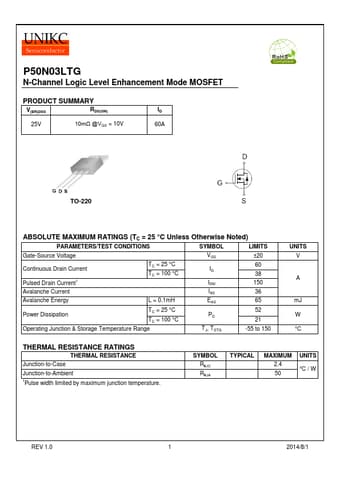

Preview of P50N03LTG PDF

Datasheet Details

Part number:

P50N03LTG

Manufacturer:

UNIKC

File Size:

467.05 KB

Description:

N-channel mosfet.
