SMA-1205B Datasheet - Ningbo

SMA-1205B Buzzer

SMT Buzzer SPA-1712 series SMT Buzzer P I DIMENSIONS 47 Top View Model No Rated Voltage Operating Voltage Max. Rated Current Min. Sound Pressure Level Resonant Frequency Operating Temperature Tone Nature Weight SPA-1712 12VDC 1.5~16 VDC 10mA at 12VDC 85dB / 12VDC/ 10cm 4.0¡À0.5KHz -20~+80¡æ Continuous 2g Value applying at rated voltage SMA-1200B series SMT Buzzer P I color Black PPS Housing Material SMT Terminal Side View Bottom View all dimensions are in mm DDIIMMEENNSSIIOONNSS .

SMA-1205B Datasheet (65.47 KB)

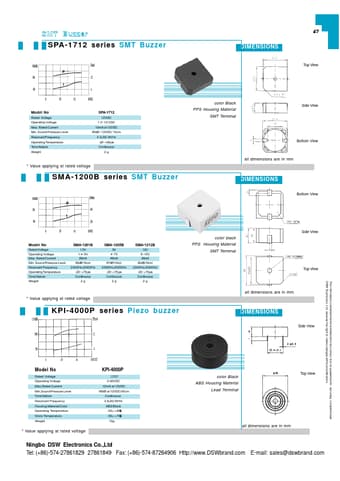

Preview of SMA-1205B PDF

Datasheet Details

Part number:

SMA-1205B

Manufacturer:

Ningbo

File Size:

65.47 KB

Description:

Buzzer.
