MUSES100 - 600mA 5.5V Low Noise LDO Regulator

Datasheet Summary

Description

Input Voltage Range (Maximum Rating): 2.5 V to 5.5 V (6.5 V) Output Voltage Range: 1.2 V to 5.0 V Output Current: 600 mA

Typ.

Ripple Rejection: Typ.

Typ.

📥 Download Datasheet

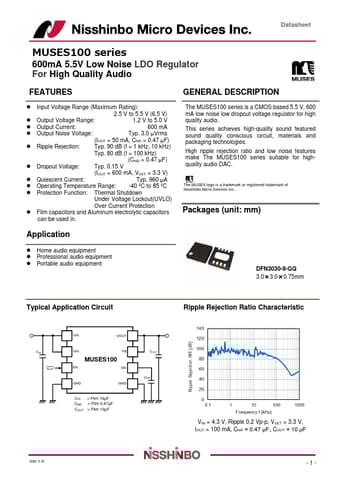

Datasheet preview – MUSES100

Datasheet Details

Part number MUSES100
Manufacturer Nisshinbo
File Size 1.91 MB
Description 600mA 5.5V Low Noise LDO Regulator
Datasheet download datasheet MUSES100 Datasheet
Additional preview pages of the MUSES100 datasheet.

📁 Similar Datasheet

  • MUSES01 - Dual Operational Amplifier (New Japan Radio)
  • MUSES02 - Dual Operational Amplifier (New Japan Radio)
  • MUSES03 - Single Operational Amplifier (New Japan Radio)
  • MUSES72320 - 2-Channel Electronic Volume (New Japan Radio)
  • MUSES8820 - High Quality Audio Dual Operational Amplifier (New Japan Radio)
  • MUSES8832 - Dual Operational Amplifier (New Japan Radio)
  • MUSES8920 - Dual Operational Amplifier (New Japan Radio)
  • MUSB-05-F-xxxx-A - STANDARD & RUGGED MINI USB INTERFACES (SamTec)
  • MUSB-05-S-xxxx-A - STANDARD & RUGGED MINI USB INTERFACES (SamTec)
  • MUSBR-05-F-xxxx-A - STANDARD & RUGGED MINI USB INTERFACES (SamTec)
Other Datasheets by Nisshinbo

Full PDF Text Transcription

Click to expand full text
Datasheet MUSES100 series 600mA 5.5V Low Noise LDO Regulator For High Quality Audio FEATURES GENERAL DESCRIPTION ⚫ Input Voltage Range (Maximum Rating): 2.5 V to 5.5 V (6.5 V) ⚫ Output Voltage Range: 1.2 V to 5.0 V ⚫ Output Current: 600 mA ⚫ Output Noise Voltage: Typ. 3.0 μVrms (IOUT = 50 mA, CNR = 0.47 μF) ⚫ Ripple Rejection: Typ. 90 dB (f = 1 kHz, 10 kHz) Typ. 80 dB (f = 100 kHz) (CNR = 0.47 μF) ⚫ Dropout Voltage: Typ. 0.15 V (IOUT = 600 mA, VSET = 3.3 V) ⚫ Quiescent Current: Typ. 960 μA ⚫ Operating Temperature Range: -40 ºC to 85 ºC ⚫ Protection Function: Thermal Shutdown Under Voltage Lockout(UVLO) Over Current Protection ⚫ Film capacitors and Aluminum electrolytic capacitors can be used in. The MUSES100 series is a CMOS based 5.
