NJW4104 - 45V Ultra low Quiescent current LDO

Datasheet Summary

Description

AEC-Q100 grade 1 qualified (T1 specification only) Low Quiescent Current 5.5µA typ.(A version) 5.0µA typ.(B version) Operating Voltage 4.0V to 40V Operating Temperature Ta=-40C to 125°C Output Voltage Accuracy VO 1.0%(Ta=25C) VO 2.0%(Ta=-40C to 125°C)

Nisshinbo

📥 Download Datasheet

Datasheet Details

Part number	NJW4104
Manufacturer	Nisshinbo
File Size	754.56 KB
Description	45V Ultra low Quiescent current LDO
Datasheet	NJW4104 Datasheet
Additional preview pages of the NJW4104 datasheet.

📁 Similar Datasheet

NJW4100 - Lithium-ion Battery Charger Controller (New Japan Radio)
NJW4107 - LDO (New Japan Radio)
NJW4108 - Lithium-ion Battery Charger Controller (JRC)
NJW4110 - 3A x 2ch Synchronous Buck Converter (New Japan Radio)
NJW4111 - 5.5V/3A Low Dropout Voltage Regulator (New Japan Radio)
NJW4113-T1 - LDO (New Japan Radio)
NJW4116-T1 - LDO (New Japan Radio)
NJW4119 - BUCK SWITCHING REGULATOR (JRC)
NJW4120 - Lithium-Battery Charger Controller (JRC)
NJW4124 - Lithium-Battery Charger Controller (JRC)

Other Datasheets by Nisshinbo

NJW4109 - 500mA LDO

Full PDF Text Transcription

Click to expand full text

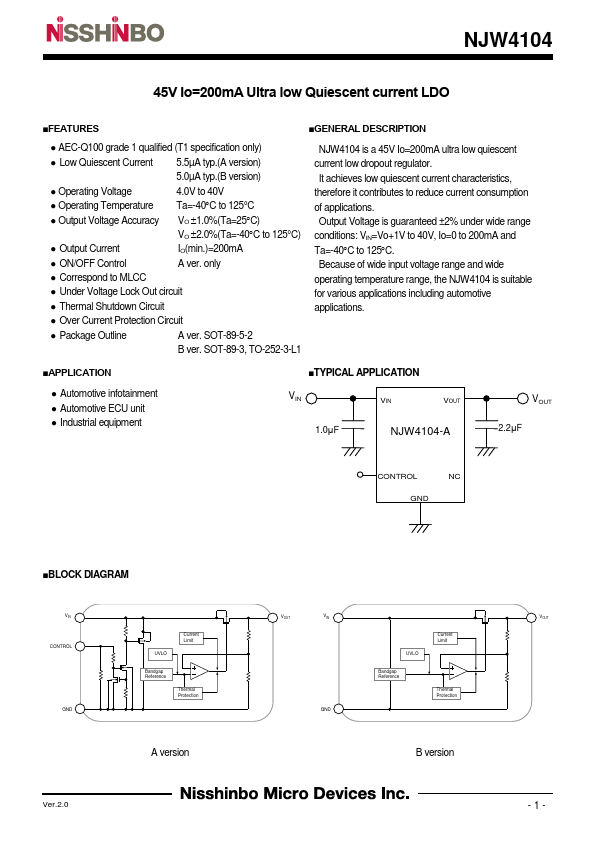

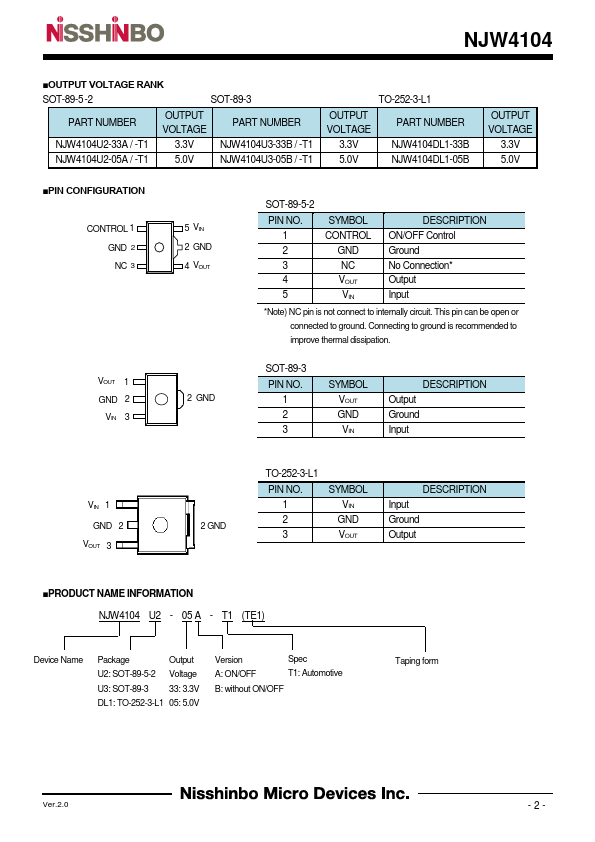

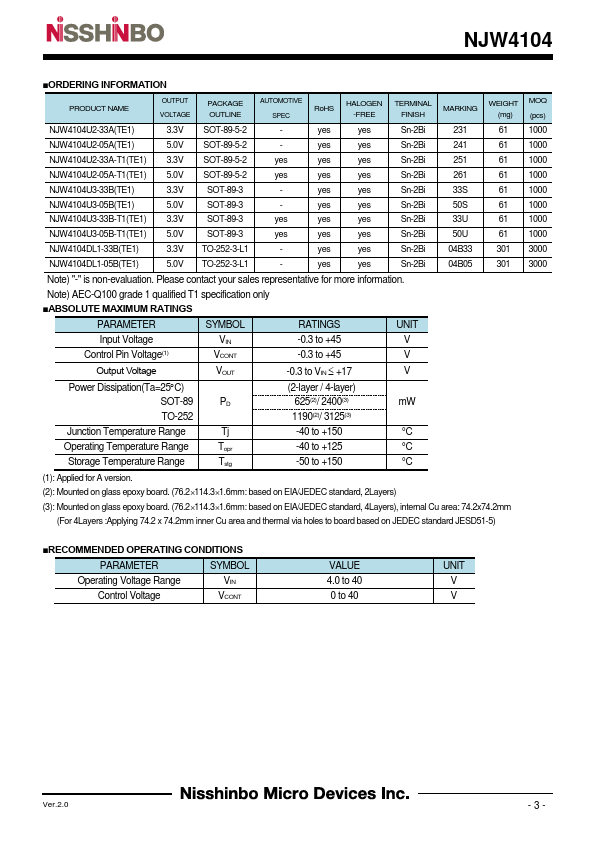

NJW4104 45V Io=200mA Ultra low Quiescent current LDO ■FEATURES ■GENERAL DESCRIPTION ● AEC-Q100 grade 1 qualified (T1 specification only) ● Low Quiescent Current 5.5µA typ.(A version) 5.0µA typ.(B version) ● Operating Voltage 4.0V to 40V ● Operating Temperature Ta=-40C to 125°C ● Output Voltage Accuracy VO 1.0%(Ta=25C) VO 2.0%(Ta=-40C to 125°C) ● Output Current IO(min.)=200mA ● ON/OFF Control A ver. only ● Correspond to MLCC ● Under Voltage Lock Out circuit ● Thermal Shutdown Circuit ● Over Current Protection Circuit ● Package Outline A ver. SOT-89-5-2 B ver. SOT-89-3, TO-252-3-L1 NJW4104 is a 45V Io=200mA ultra low quiescent current low dropout regulator.
