NJW4119 - BUCK SWITCHING REGULATOR

Datasheet Summary

Description

The NJW4119 is a buck switching regulator with voltage correction circuit that delivers up to 2.4 A of output current.

The voltage correction (cable drop compensation) raises the output voltage in proportion to the load current.

Features

  • S.
  • Output Current 2.4 A.
  • Default Output Voltage Accuracy.
  • Output Voltage Correction VO_SENSE ±1% VO + 253 mV (typ), 0 A to 2.0 A at RADJ = 10 kΩ.
  • Soft-Start Adjustable with external capacitors.
  • External Synchronization 290 kHz to 500 kHz.
  • Error Flag Output (FAULT).
  • Error Flag Output Delay for Hot Plug 1.4 msec (typ).
  • Power-Good Output.
  • V+ Short Detection.
  • ON/OFF Control.
  • Discharge at OFF-State.
  • Overcurrent Protection (Hi.

📥 Download Datasheet

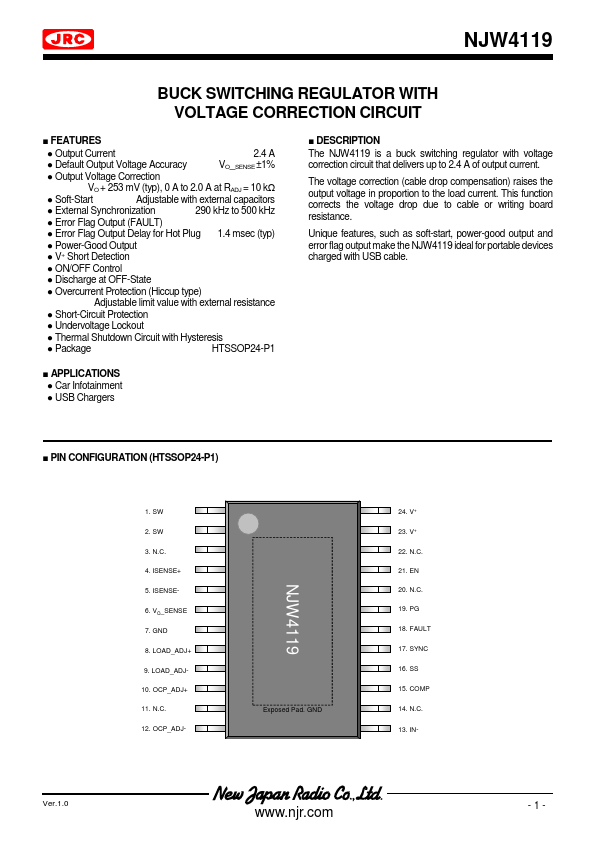

Datasheet preview – NJW4119

Datasheet Details

Part number NJW4119
Manufacturer JRC
File Size 443.88 KB
Description BUCK SWITCHING REGULATOR
Datasheet download datasheet NJW4119 Datasheet

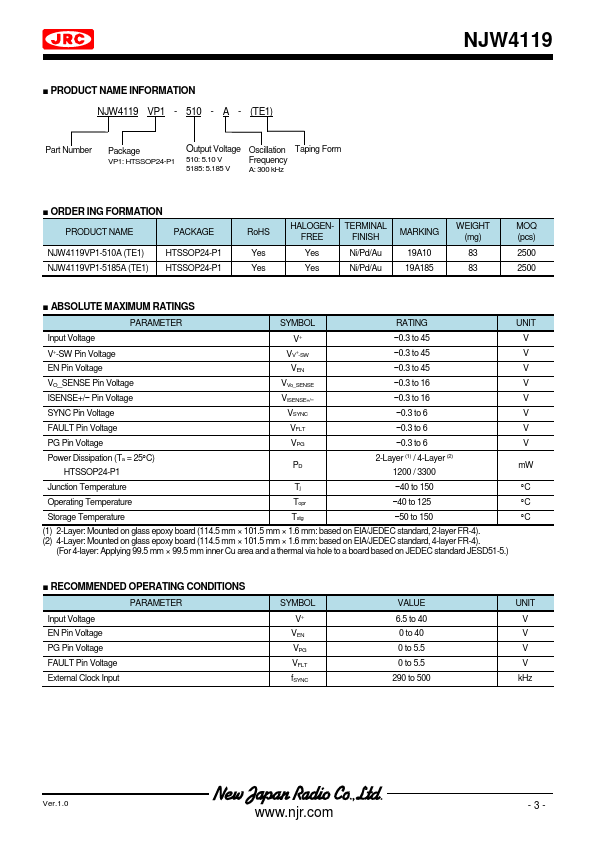

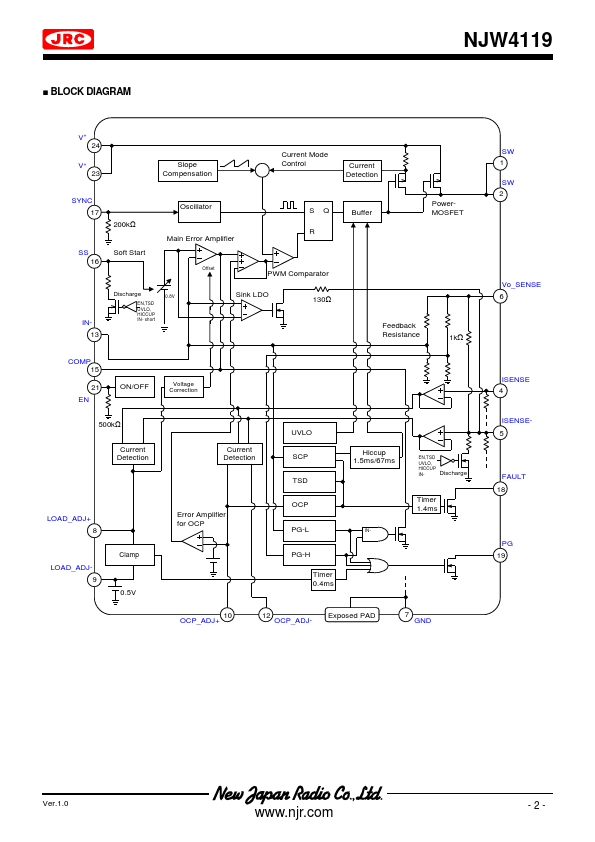

Additional preview pages of the NJW4119 datasheet.

📁 Similar Datasheet

  • NJW4110 - 3A x 2ch Synchronous Buck Converter (New Japan Radio)
  • NJW4111 - 5.5V/3A Low Dropout Voltage Regulator (New Japan Radio)
  • NJW4113-T1 - LDO (New Japan Radio)
  • NJW4116-T1 - LDO (New Japan Radio)
  • NJW4100 - Lithium-ion Battery Charger Controller (New Japan Radio)
  • NJW4104 - 45V Ultra low Quiescent current LDO (Nisshinbo)
  • NJW4107 - LDO (New Japan Radio)
  • NJW4109 - 500mA LDO (Nisshinbo)
  • NJW4128 - Switching Regulator (New Japan Radio)
  • NJW4131 - Switching Regulator (New Japan Radio)
Other Datasheets by JRC
  • NJW4108 - Lithium-ion Battery Charger Controller
  • NJW4120 - Lithium-Battery Charger Controller
  • NJW4124 - Lithium-Battery Charger Controller
  • NJW4133 - 45V 5A MOSFET Switching Regulator
  • NJW4138 - Internal 45V MOSFET Switching Regulator
  • NJW4187 - High Voltage Low Dropout Regulator
  • NJW4188 - High Voltage Adjustable Low Dropout Regulator
  • NJW4210 - Synchronous Buck Boost Switching Controller

Full PDF Text Transcription

Click to expand full text
NJW4119 BUCK SWITCHING REGULATOR WITH VOLTAGE CORRECTION CIRCUIT ■ FEATURES ● Output Current 2.4 A ● Default Output Voltage Accuracy ● Output Voltage Correction VO_SENSE ±1% VO + 253 mV (typ), 0 A to 2.0 A at RADJ = 10 kΩ ● Soft-Start Adjustable with external capacitors ● External Synchronization 290 kHz to 500 kHz ● Error Flag Output (FAULT) ● Error Flag Output Delay for Hot Plug 1.
