NJW4133 - 45V 5A MOSFET Switching Regulator

Datasheet Summary

Description

frequency boost converter with 45V/5A MOSFET.

3.0V to 40V, it can correspond to supply voltage drop such as cold crank.

Features

  • S.
  • Switch Current Limit 5A min.
  • Oscillating Frequency 100kHz to 2.4MHz.
  • Current Mode Control.
  • Phase compensation can be adjusted with an external circuit.
  • Correspond to Ceramic Capacitor (MLCC).
  • External Clock Synchronization.
  • Soft Start Function 20ms typ.
  • Wide Operating Input Voltage Range 3V to 40V.
  • PWM control.
  • Internal Protection Function - Over Voltage Protection Function - Under Voltage Lockout Function(UVLO) - Over Curre.

📥 Download Datasheet

Datasheet preview – NJW4133

Datasheet Details

Part number NJW4133
Manufacturer JRC
File Size 374.35 KB
Description 45V 5A MOSFET Switching Regulator
Datasheet download datasheet NJW4133 Datasheet

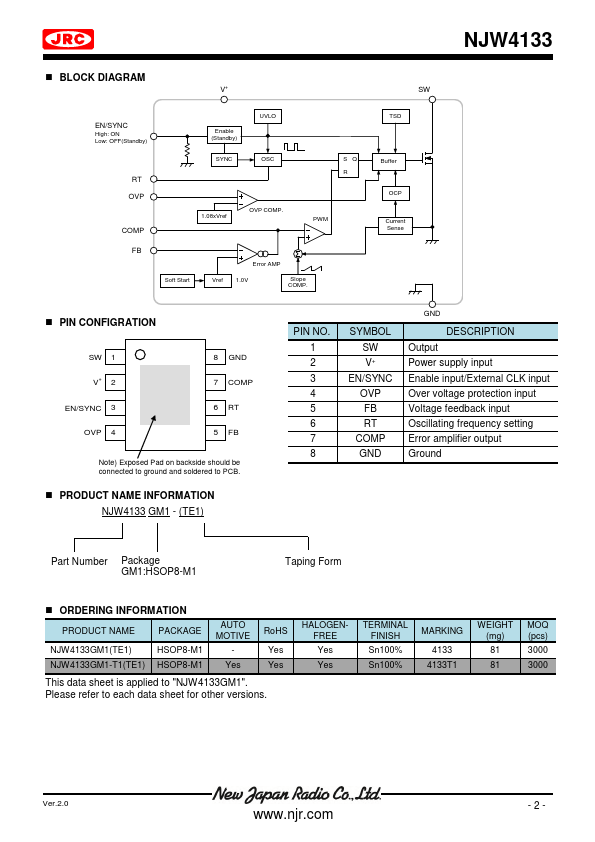

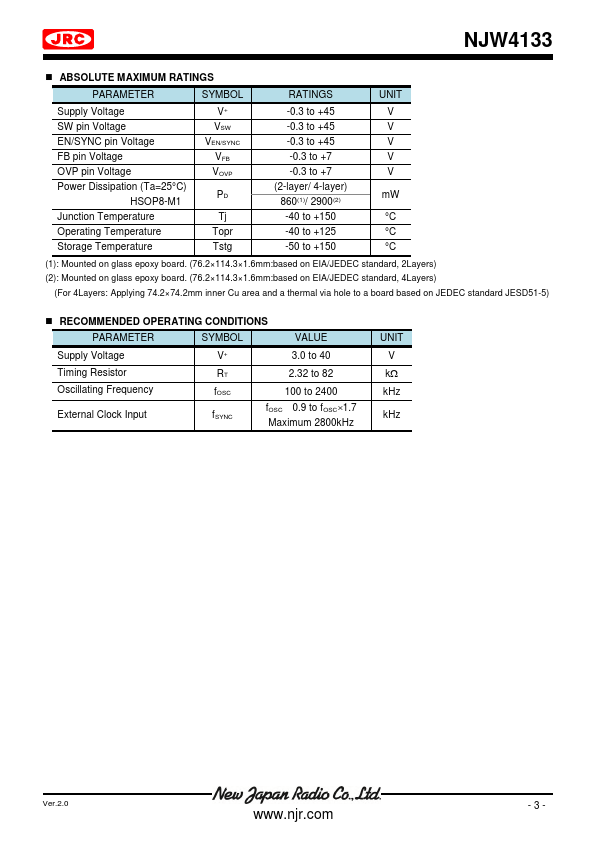

Additional preview pages of the NJW4133 datasheet.

📁 Similar Datasheet

  • NJW4131 - Switching Regulator (New Japan Radio)
  • NJW4132 - Switching Regulator (New Japan Radio)
  • NJW4132 - (Automotive) Switching Regulator (New Japan Radio)
  • NJW4100 - Lithium-ion Battery Charger Controller (New Japan Radio)
  • NJW4104 - 45V Ultra low Quiescent current LDO (Nisshinbo)
  • NJW4107 - LDO (New Japan Radio)
  • NJW4109 - 500mA LDO (Nisshinbo)
  • NJW4110 - 3A x 2ch Synchronous Buck Converter (New Japan Radio)
  • NJW4111 - 5.5V/3A Low Dropout Voltage Regulator (New Japan Radio)
  • NJW4113-T1 - LDO (New Japan Radio)
Other Datasheets by JRC
  • NJW4138 - Internal 45V MOSFET Switching Regulator
  • NJW4108 - Lithium-ion Battery Charger Controller
  • NJW4119 - BUCK SWITCHING REGULATOR
  • NJW4120 - Lithium-Battery Charger Controller
  • NJW4124 - Lithium-Battery Charger Controller
  • NJW4187 - High Voltage Low Dropout Regulator
  • NJW4188 - High Voltage Adjustable Low Dropout Regulator
  • NJW4210 - Synchronous Buck Boost Switching Controller

Full PDF Text Transcription

Click to expand full text

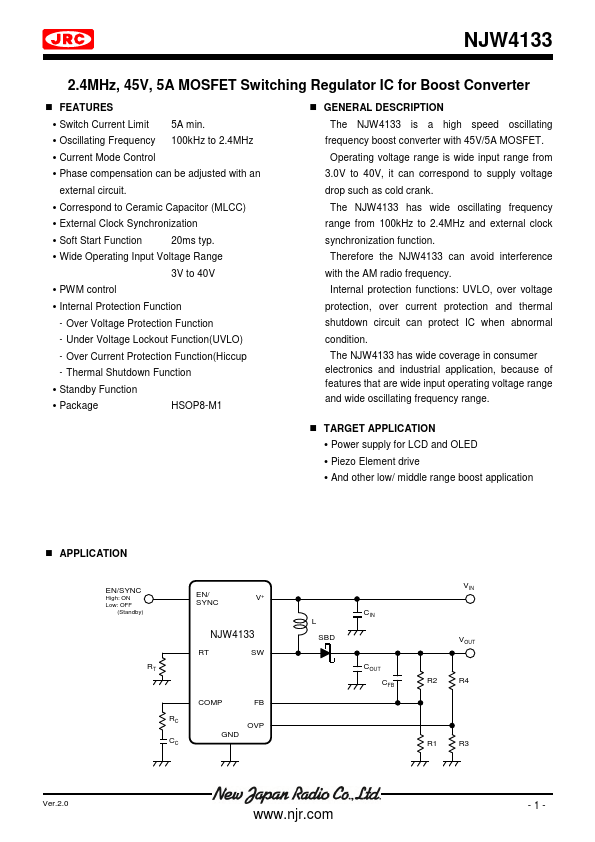

NJW4133 2.4MHz, 45V, 5A MOSFET Switching Regulator IC for Boost Converter  FEATURES  Switch Current Limit 5A min.  Oscillating Frequency 100kHz to 2.4MHz  Current Mode Control  Phase compensation can be adjusted with an external circuit.  Correspond to Ceramic Capacitor (MLCC)  External Clock Synchronization  Soft Start Function 20ms typ.  Wide Operating Input Voltage Range 3V to 40V  PWM control  Internal Protection Function - Over Voltage Protection Function - Under Voltage Lockout Function(UVLO) - Over Current Protection Function(Hiccup - Thermal Shutdown Function  Standby Function  Package HSOP8-M1  GENERAL DESCRIPTION The NJW4133 is a high speed oscillating frequency boost converter with 45V/5A MOSFET.
