R1172D, R1172N - SUPER LOW ON RESISTANCE / LOW VOLTAGE 1A LDO

R1172D Description

R1172x SERIES SUPER LOW ON RESISTANCE / LOW VOLTAGE 1A LDO NO.EA-122-130924 OUTLINE The R1172x Series are CMOS-based positive voltage regulator ICs.T.
SOT-23-5 Pin No.

R1172D Applications

* that require a large current at small dropout are suitable for the R1172x series. Low input voltage is acceptable and low output voltage can be set. The minimum input voltage is 1.4V, and the lowest set output voltage is 0.8V. Each of these ICs consists of a voltage reference unit, an error amplifie

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: R1172D, R1172N. Please refer to the document for exact specifications by model.

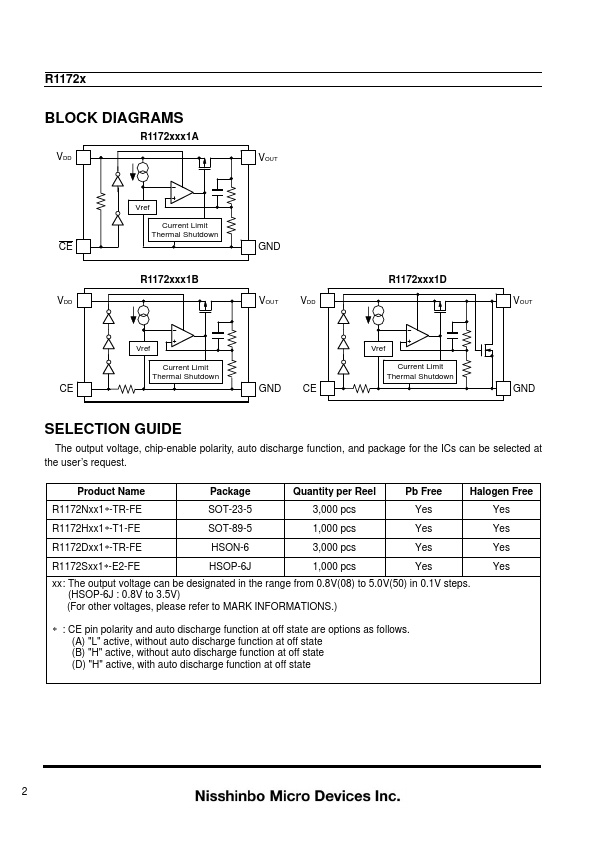

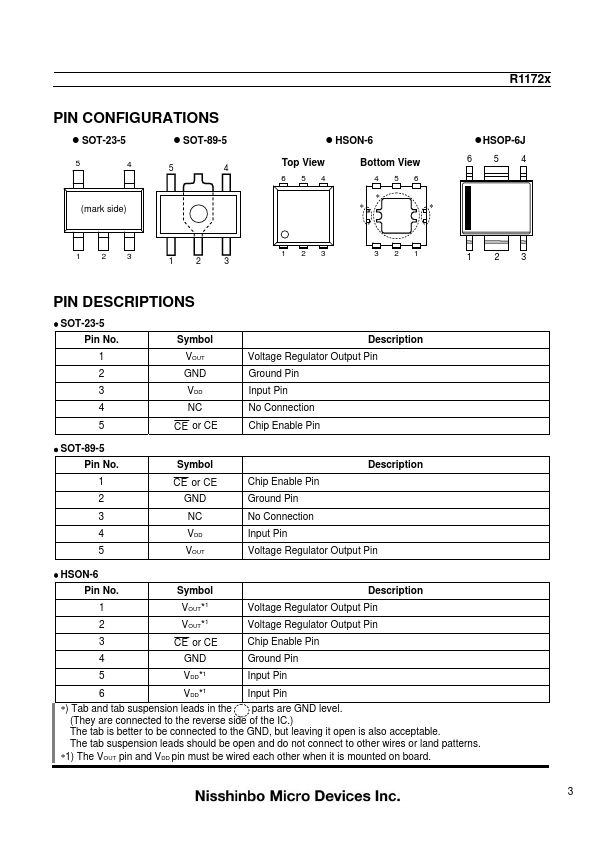

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
R1172D, R1172N
Manufacturer
Nisshinbo
File Size
515.08 KB
Datasheet
R1172N-Nisshinbo.pdf
Description
SUPER LOW ON RESISTANCE / LOW VOLTAGE 1A LDO
Note
This datasheet PDF includes multiple part numbers: R1172D, R1172N.
Please refer to the document for exact specifications by model.
